#include "Headers/Model.h"

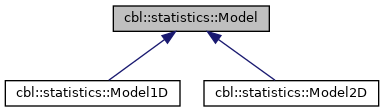

Inheritance diagram for cbl::statistics::Model:

Public Member Functions
Dim	dimension () const
	return the model dimension More...

void	set_function (const model_function_1D function)
	set the model function, for Model1D More...

void	set_function (const std::vector< double >(*function)(const std::vector< double > xx, std::vector< double > &val))
	set the model function, for Model1D More...

void	set_function (const model_function_2D function)
	set the model function, for Model2D More...

void	set_inputs (std::shared_ptr< void > inputs)
	set the model inputs More...

void	set_parameters (const std::shared_ptr< ModelParameters > parameters)
	set the model parameters More...

void	set_parameters (const size_t nparameters, std::vector< ParameterType > parameterTypes, std::vector< std::string > parameterNames)
	set the model parameters More...

std::shared_ptr< void >	inputs ()
	return the model inputs More...

std::shared_ptr< ModelParameters >	parameters ()
	return the model parameters More...

std::vector< std::vector< double > >	operator() (const std::vector< std::vector< double >> xx, std::vector< double > &parameters) const
	evalueate the model function at xx, for Model1D More...

virtual double	operator() (const double xx, std::vector< double > &parameters) const
	evaluate the model function at xx, for Model1D More...

virtual std::vector< double >	operator() (const std::vector< double > xx, std::vector< double > &parameters) const
	evaluate the model function at xx, for Model1D More...

virtual double	operator() (const double xx, const double yy, std::vector< double > &parameters) const
	evaluate the model function at xx, yy, for Model2D More...

virtual std::vector< std::vector< double > >	operator() (const std::vector< double > xx, const std::vector< double > yy, std::vector< double > &parameters) const
	evaluate the model function at xx, yy, for Model2D More...

void	stats_from_chains (const std::vector< std::vector< double >> xx, std::vector< std::vector< double >> &median_model, std::vector< std::vector< double >> &low_model, std::vector< std::vector< double >> &up_model, const int start=0, const int thin=1)
	compute the median and percentiles of the model from MCMC chains More...

virtual void	stats_from_chains (const std::vector< double > xx, std::vector< double > &median_model, std::vector< double > &low_model, std::vector< double > &up_model, const int start=0, const int thin=1)
	compute the median and percentiles of the model from MCMC chains More...

virtual void	stats_from_chains (const std::vector< double > xx, const std::vector< double > yy, std::vector< std::vector< double >> &median_model, std::vector< std::vector< double >> &low_model, std::vector< std::vector< double >> &up_model, const int start=0, const int thin=1)
	compute the median and percentiles of the model from MCMC chains More...

virtual void	write (const std::string output_dir, const std::string output_file, const std::vector< double > xx, const std::vector< double > parameters)
	write the model at xx for given parameters More...

virtual void	write (const std::string output_dir, const std::string output_file, const std::vector< double > xx, const std::vector< double > yy, const std::vector< double > parameters)
	write the model at xx, yy for given parameters More...

virtual void	write_at_bestfit (const std::string output_dir, const std::string output_file, const std::vector< double > xx)
	write the model at xx with best-fit parameters obtained from likelihood maximization More...

virtual void	write_at_bestfit (const std::string output_dir, const std::string output_file, const std::vector< double > xx, const std::vector< double > yy)
	write the model at xx, yy with best-fit parameters obtained from likelihood maximization More...

virtual void	write_from_chains (const std::string output_dir, const std::string output_file, const std::vector< double > xx, const int start=0, const int thin=1)
	write the model at xx computing 16th, 50th and 84th percentiles from the chains. More...

virtual void	write_from_chains (const std::string output_dir, const std::string output_file, const std::vector< double > xx, const std::vector< double > yy, const int start=0, const int thin=1)
	write the model at xx, yy computing 16th, 50th and 84th percentiles from the chains. More...

Constructors/destructors
	Model ()=default
	default constructor

	Model (const int nparameters, std::vector< ParameterType > parameterTypes, std::vector< std::string > parameterNames, const std::shared_ptr< void > inputs)
	constructor More...

virtual	~Model ()=default
	default destructor

Protected Attributes
std::shared_ptr< void >	m_inputs
	inputs of the model

std::shared_ptr< ModelParameters >	m_parameters
	parameters of the model

model_function_generic	m_function
	the model function

Dim	m_dimension
	the model dimension

Detailed Description

The class Model.

This class is used to define models

Definition at line 81 of file Model.h.

Constructor & Destructor Documentation

◆ Model()

cbl::statistics::Model::Model	(	const int	nparameters,
		std::vector< ParameterType >	parameterTypes,
		std::vector< std::string >	parameterNames,
		const std::shared_ptr< void >	inputs
	)

inline

constructor

Parameters

nparameters	the number of parameters
parameterTypes	the parameter types
parameterNames	the parameter names
inputs	inputs of the model

Definition at line 120 of file Model.h.

Member Function Documentation

◆ dimension()

Dim cbl::statistics::Model::dimension ( ) const

inline

return the model dimension

Returns: the model dimension

Definition at line 137 of file Model.h.

◆ inputs()

std::shared_ptr<void> cbl::statistics::Model::inputs ( )

inline

return the model inputs

Returns: pointer to the model inputs

Definition at line 200 of file Model.h.

◆ operator()() [1/5]

virtual double cbl::statistics::Model::operator()	(	const double	xx,
		const double	yy,
		std::vector< double > &	parameters
	)		const

inlinevirtual

evaluate the model function at xx, yy, for Model2D

Parameters

xx	the positions at which the model is computed
yy	the positions at which the model is computed
parameters	vector containing the model parameters

Returns: vector containing model values

Reimplemented in cbl::statistics::Model2D.

Definition at line 259 of file Model.h.

◆ operator()() [2/5]

virtual double cbl::statistics::Model::operator()	(	const double	xx,
		std::vector< double > &	parameters
	)		const

inlinevirtual

evaluate the model function at xx, for Model1D

Parameters

xx	the positions at which the model is computed
parameters	vector containing the model parameters

Returns: vector containing model values

Reimplemented in cbl::statistics::Model1D.

Definition at line 232 of file Model.h.

◆ operator()() [3/5]

virtual std::vector<std::vector<double> > cbl::statistics::Model::operator()	(	const std::vector< double >	xx,
		const std::vector< double >	yy,
		std::vector< double > &	parameters
	)		const

inlinevirtual

evaluate the model function at xx, yy, for Model2D

Parameters

xx	vector containing the positions at which the model is computed
yy	vector containing the positions at which the model is computed
parameters	vector containing the model parameters

Returns: vector containing model values

Reimplemented in cbl::statistics::Model2D.

Definition at line 275 of file Model.h.

◆ operator()() [4/5]

virtual std::vector<double> cbl::statistics::Model::operator()	(	const std::vector< double >	xx,
		std::vector< double > &	parameters
	)		const

inlinevirtual

evaluate the model function at xx, for Model1D

Parameters

xx	vector containing the positions at which the model is computed
parameters	vector containing the model parameters

Returns: vector containing model values

Reimplemented in cbl::statistics::Model1D.

Definition at line 245 of file Model.h.

◆ operator()() [5/5]

vector< vector< double > > cbl::statistics::Model::operator()	(	const std::vector< std::vector< double >>	xx,
		std::vector< double > &	parameters
	)		const

evalueate the model function at xx, for Model1D

Parameters

xx	vector containing the positions at which the model is computed
parameters	vector containing the model parameters

Returns: vector containing model values

Definition at line 43 of file Model.cpp.

◆ parameters()

std::shared_ptr<ModelParameters> cbl::statistics::Model::parameters ( )

inline

return the model parameters

Returns: pointer to an object of class ModelParameters

Definition at line 208 of file Model.h.

◆ set_function() [1/3]

void cbl::statistics::Model::set_function ( const model_function_1D function )

inline

set the model function, for Model1D

Parameters

function pointer to a model_function_1D

Definition at line 146 of file Model.h.

◆ set_function() [2/3]

void cbl::statistics::Model::set_function ( const model_function_2D function )

inline

set the model function, for Model2D

Parameters

function pointer to a model_function_2D

Definition at line 167 of file Model.h.

◆ set_function() [3/3]

void cbl::statistics::Model::set_function ( const std::vector< double >(*)(const std::vector< double > xx, std::vector< double > &val) function )

inline

set the model function, for Model1D

Parameters

function pointer to a model_function_1D

Warning: function passed in this way doesn't allow for input parameters

Definition at line 159 of file Model.h.

◆ set_inputs()

void cbl::statistics::Model::set_inputs ( std::shared_ptr< void > inputs )

inline

set the model inputs

Parameters

inputs the inputs of the model

Definition at line 175 of file Model.h.

◆ set_parameters() [1/2]

void cbl::statistics::Model::set_parameters	(	const size_t	nparameters,
		std::vector< ParameterType >	parameterTypes,
		std::vector< std::string >	parameterNames
	)

set the model parameters

Parameters

nparameters	the number of parameters
parameterTypes	the parameter types
parameterNames	the parameter names

Definition at line 53 of file Model.cpp.

◆ set_parameters() [2/2]

void cbl::statistics::Model::set_parameters ( const std::shared_ptr< ModelParameters > parameters )

inline

set the model parameters

Parameters

parameters pointer to parameters

Definition at line 182 of file Model.h.

◆ stats_from_chains() [1/3]

virtual void cbl::statistics::Model::stats_from_chains	(	const std::vector< double >	xx,
		const std::vector< double >	yy,
		std::vector< std::vector< double >> &	median_model,
		std::vector< std::vector< double >> &	low_model,
		std::vector< std::vector< double >> &	up_model,
		const int	start = `0`,
		const int	thin = `1`
	)

inlinevirtual

compute the median and percentiles of the model from MCMC chains

Parameters

xx	vector of points at which the model is computed, first axis
yy	vector of points at which the model is computed, second axis
median_model	the median model
low_model	the model at 16th percentile
up_model	the model at 84th percentile
start	the starting position for each chain
thin	the position step

Reimplemented in cbl::statistics::Model2D.

Definition at line 321 of file Model.h.

◆ stats_from_chains() [2/3]

virtual void cbl::statistics::Model::stats_from_chains	(	const std::vector< double >	xx,
		std::vector< double > &	median_model,
		std::vector< double > &	low_model,
		std::vector< double > &	up_model,
		const int	start = `0`,
		const int	thin = `1`
	)

inlinevirtual

compute the median and percentiles of the model from MCMC chains

Parameters

xx	vector of points at which the model is computed,
median_model	the median model
low_model	the model at 16th percentile
up_model	the model at 84th percentile
start	the starting position for each chain
thin	the position step

Reimplemented in cbl::statistics::Model1D.

Definition at line 303 of file Model.h.

◆ stats_from_chains() [3/3]

void cbl::statistics::Model::stats_from_chains	(	const std::vector< std::vector< double >>	xx,
		std::vector< std::vector< double >> &	median_model,
		std::vector< std::vector< double >> &	low_model,
		std::vector< std::vector< double >> &	up_model,
		const int	start = `0`,
		const int	thin = `1`
	)

compute the median and percentiles of the model from MCMC chains

Parameters

xx	vector of points at which the model is computed,
median_model	the median model
low_model	the model at 16th percentile
up_model	the model at 84th percentile
start	the starting position for each chain
thin	the position step

Definition at line 62 of file Model.cpp.

◆ write() [1/2]

virtual void cbl::statistics::Model::write	(	const std::string	output_dir,
		const std::string	output_file,
		const std::vector< double >	xx,
		const std::vector< double >	parameters
	)

inlinevirtual

write the model at xx for given parameters

Parameters

output_dir	the output directory
output_file	the output file
xx	vector of points at which the model is computed,
parameters	vector containing the input parameters used to compute the model; if this vector is not provided, the model will be computed using the best-fit parameters

Reimplemented in cbl::statistics::Model1D.

Definition at line 335 of file Model.h.

◆ write() [2/2]

virtual void cbl::statistics::Model::write	(	const std::string	output_dir,
		const std::string	output_file,
		const std::vector< double >	xx,
		const std::vector< double >	yy,
		const std::vector< double >	parameters
	)

inlinevirtual

write the model at xx, yy for given parameters

Parameters

output_dir	the output directory
output_file	the output file
xx	vector of points at which the model is computed, first axis
yy	vector of points at which the model is computed, second axis
parameters	vector containing the input parameters used to compute the model; if this vector is not provided, the model will be computed using the best-fit parameters

Reimplemented in cbl::statistics::Model2D.

Definition at line 352 of file Model.h.

◆ write_at_bestfit() [1/2]

virtual void cbl::statistics::Model::write_at_bestfit	(	const std::string	output_dir,
		const std::string	output_file,
		const std::vector< double >	xx
	)

inlinevirtual

write the model at xx with best-fit parameters obtained from likelihood maximization

Parameters

output_dir	the output directory
output_file	the output file
xx	vector of points at which the model is computed

Reimplemented in cbl::statistics::Model1D.

Definition at line 364 of file Model.h.

◆ write_at_bestfit() [2/2]

virtual void cbl::statistics::Model::write_at_bestfit	(	const std::string	output_dir,
		const std::string	output_file,
		const std::vector< double >	xx,
		const std::vector< double >	yy
	)

inlinevirtual

write the model at xx, yy with best-fit parameters obtained from likelihood maximization

Parameters

output_dir	the output directory
output_file	the output file
xx	vector of points at which the model is computed, first axis
yy	vector of points at which the model is computed, second axis

Reimplemented in cbl::statistics::Model2D.

Definition at line 379 of file Model.h.

◆ write_from_chains() [1/2]

virtual void cbl::statistics::Model::write_from_chains	(	const std::string	output_dir,
		const std::string	output_file,
		const std::vector< double >	xx,
		const int	start = `0`,
		const int	thin = `1`
	)

inlinevirtual

write the model at xx computing 16th, 50th and 84th percentiles from the chains.

Parameters

output_dir	the output directory
output_file	the output file
xx	vector of points at which the model is computed,
start	the starting position for each chain
thin	the position step

Reimplemented in cbl::statistics::Model1D.

Definition at line 393 of file Model.h.

◆ write_from_chains() [2/2]

virtual void cbl::statistics::Model::write_from_chains	(	const std::string	output_dir,
		const std::string	output_file,
		const std::vector< double >	xx,
		const std::vector< double >	yy,
		const int	start = `0`,
		const int	thin = `1`
	)

inlinevirtual

write the model at xx, yy computing 16th, 50th and 84th percentiles from the chains.

Parameters

output_dir	the output directory
output_file	the output file
xx	vector of points at which the model is computed, first axis
yy	vector of points at which the model is computed, second axis
start	the starting position for each chain
thin	the position step

Reimplemented in cbl::statistics::Model2D.

Definition at line 410 of file Model.h.

The documentation for this class was generated from the following files:

Headers/Model.h
Statistics/Model.cpp

Public Member Functions

Protected Attributes

Detailed Description

Constructor & Destructor Documentation

◆ Model()

Member Function Documentation

◆ dimension()

◆ inputs()

◆ operator()() [1/5]

◆ operator()() [2/5]

◆ operator()() [3/5]

◆ operator()() [4/5]

◆ operator()() [5/5]

◆ parameters()

◆ set_function() [1/3]

◆ set_function() [2/3]

◆ set_function() [3/3]

◆ set_inputs()

◆ set_parameters() [1/2]

◆ set_parameters() [2/2]

◆ stats_from_chains() [1/3]

◆ stats_from_chains() [2/3]

◆ stats_from_chains() [3/3]

◆ write() [1/2]

◆ write() [2/2]

◆ write_at_bestfit() [1/2]

◆ write_at_bestfit() [2/2]

◆ write_from_chains() [1/2]

◆ write_from_chains() [2/2]
