#include "Headers/Triplet.h"

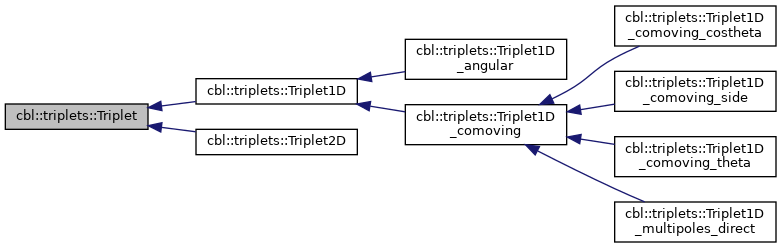

Inheritance diagram for cbl::triplets::Triplet:

[legend]

Public Member Functions
Member functions used to get private/protected parameters
Dim	tripletDim () const
	get the dimension of the triplet vectors More...

TripletType	tripletType () const
	get the triplet type More...

virtual double	scale (const int i) const
	get the protected member m_scale[i] More...

virtual std::vector< double >	scale () const
	get the protected member m_scale More...

virtual double	TT1D (const int i) const
	get the private member m_TT1D[i] More...

virtual std::vector< double >	TT1D () const
	get the private member m_TT1D More...

virtual double	scale_D1 (const int i) const
	get the protected member m_scale_D1[i] More...

virtual std::vector< double >	scale_D1 () const
	get the protected member m_scale_D1 More...

virtual double	scale_D2 (const int i) const
	get the protected member m_scale_D2[i] More...

virtual std::vector< double >	scale_D2 () const
	get the protected member m_scale_D2 More...

virtual double	TT2D (const int i, const int j) const
	get the protected member m_TT2D[i] More...

virtual std::vector< std::vector< double > >	TT2D () const
	get the protected member m_TT2D More...

virtual double	r12 () const
	get the private member m_r12 More...

virtual double	r12_binSize () const
	get the private member m_r12 More...

virtual double	r13 () const
	get the private member m_side_u More...

virtual double	r13_binSize () const
	get the private member m_side_u More...

virtual int	nbins () const
	get the private member m_nbins More...

virtual double	binSize () const
	get the private member m_binSize More...

virtual double	r12_D1 () const
	get the protected member Triplet1D::m_r12_D1 More...

virtual double	r12_binSize_D1 () const
	get the protected member Triplet1D::m_r12_binSize_D1 More...

virtual double	r13_D1 () const
	get the protected member Triplet1D::m_r13_D1 More...

virtual double	r13_binSize_D1 () const
	get the protected member Triplet1D::m_r13_binSize_D1 More...

virtual int	nbins_D1 () const
	get the protected member Triplet1D::m_nbins_D1 More...

virtual double	binSize_D1 () const
	get the protected member Triplet1D::m_binSize_D1 More...

virtual double	r12_D2 () const
	get the protected member Triplet1D::m_r12_D1 More...

virtual double	r12_binSize_D2 () const
	get the protected member Triplet1D::m_r12_binSize_D1 More...

virtual double	r13_D2 () const
	get the protected member Triplet1D::m_r13_D2 More...

virtual double	r13_binSize_D2 () const
	get the protected member Triplet1D::m_r13_binSize_D2 More...

virtual int	nbins_D2 () const
	get the protected member Triplet1D::m_nbins_D2 More...

virtual double	binSize_D2 () const
	get the protected member Triplet1D::m_binSize_D2 More...

Member functions used to set private/protected members
virtual void	set_TT1D (const int i, const double tt)
	set the member m_TT1D[i] More...

virtual void	add_TT1D (const int i, const double tt)
	set the protected member Triplet1D::m_TT1D[i] adding the number of triplets More...

Member functions used to handle object triplets (customized in all the derived classes)
virtual void	get_triplet (const double r12, const double r13, const double r23, int &klin)=0
	estimate the distance between two objects and update the triplet vectors accordingly More...

virtual void	set_triplet (const int klin, const double ww=1.)=0
	update the triplet More...

virtual void	put (const double r12, const double r13, const double r23, const double ww=1.)=0
	estimate the distance between two objects and update the triplet vectors accordingly More...

virtual void	put (const std::shared_ptr< catalogue::Object > obj1, const std::shared_ptr< catalogue::Object > obj2, const std::shared_ptr< catalogue::Object > obj3)=0
	estimate the distance between three objects and update the triplet vectors accordingly More...

virtual void	Sum (const std::shared_ptr< Triplet > tt, const double ww=1.)=0
	sum the number of triplets More...

Protected Attributes
Dim	m_tripletDim
	the dimension of the triplet vectors

TripletType	m_tripletType
	triplet type

Private Member Functions
Member functions used to set the binning parameters
(customized in all the derived classes)
virtual void	set_parameters ()=0
	set the binning parameters

Constructors/destructors
virtual	~Triplet ()
	default destructor

static std::shared_ptr< Triplet >	Create (const TripletType type, const double r12, const double r12_binSize, const double r13, const double r13_binSize, const int nbins)
	static factory used to construct triplets of any type More...

Detailed Description

The class Triplet.

This class is used to handle objects of type Triplet . It contains all virtual methods implemented in the derived classes Triplet2D and Triplet3D

Definition at line 133 of file Triplet.h.

Member Function Documentation

◆ add_TT1D()

virtual void cbl::triplets::Triplet::add_TT1D	(	const int	i,
		const double	tt
	)

inlinevirtual

set the protected member Triplet1D::m_TT1D[i] adding the number of triplets

Parameters

i	the bin index
tt	the number of triplets in the bin

Reimplemented in cbl::triplets::Triplet1D.

Definition at line 440 of file Triplet.h.

◆ binSize()

virtual double cbl::triplets::Triplet::binSize ( ) const

inlinevirtual

get the private member m_binSize

Returns: the bin size, or an error message if the derived object does not have this member

Reimplemented in cbl::triplets::Triplet1D.

Definition at line 320 of file Triplet.h.

◆ binSize_D1()

virtual double cbl::triplets::Triplet::binSize_D1 ( ) const

inlinevirtual

get the protected member Triplet1D::m_binSize_D1

Returns: the bin size in the first dimension, or an error message if the derived object does not have this member

Reimplemented in cbl::triplets::Triplet2D.

Definition at line 368 of file Triplet.h.

◆ binSize_D2()

virtual double cbl::triplets::Triplet::binSize_D2 ( ) const

inlinevirtual

get the protected member Triplet1D::m_binSize_D2

Returns: the bin size in the second dimension, or an error message if the derived object does not have this member

Reimplemented in cbl::triplets::Triplet2D.

Definition at line 416 of file Triplet.h.

◆ Create()

std::shared_ptr< Triplet > cbl::triplets::Triplet::Create	(	const TripletType	type,
		const double	r12,
		const double	r12_binSize,
		const double	r13,
		const double	r13_binSize,
		const int	nbins
	)

static

static factory used to construct triplets of any type

Parameters

type	the triplet type; it can be: _comoving_theta, _comoving_side
r12	the size of r₁₂
r12_binSize	the r₁₂ bin size
r13	the ratio r₁₃
r13_binSize	the r₁₂ bin size
nbins	the number of bins

Returns: a pointer to an object of class Triplet of a given type

Definition at line 51 of file Triplet.cpp.

◆ get_triplet()

virtual void cbl::triplets::Triplet::get_triplet	(	const double	r12,
		const double	r13,
		const double	r23,
		int &	klin
	)

pure virtual

estimate the distance between two objects and update the triplet vectors accordingly

Parameters

r12	distance between object1 and object2
r13	distance between object1 and object3
r23	distance between object2 and object3
klin	triplet bin

Implemented in cbl::triplets::Triplet2D, cbl::triplets::Triplet1D_comoving_costheta, cbl::triplets::Triplet1D_comoving_side, cbl::triplets::Triplet1D_comoving_theta, and cbl::triplets::Triplet1D_multipoles_direct.

◆ nbins()

virtual int cbl::triplets::Triplet::nbins ( ) const

inlinevirtual

get the private member m_nbins

Returns: the number of bins, or an error message if the derived object does not have this member

Reimplemented in cbl::triplets::Triplet1D.

Definition at line 313 of file Triplet.h.

◆ nbins_D1()

virtual int cbl::triplets::Triplet::nbins_D1 ( ) const

inlinevirtual

get the protected member Triplet1D::m_nbins_D1

Returns: the number of bins the first dimension, or an error message if the derived object does not have this member

Definition at line 360 of file Triplet.h.

◆ nbins_D2()

virtual int cbl::triplets::Triplet::nbins_D2 ( ) const

inlinevirtual

get the protected member Triplet1D::m_nbins_D2

Returns: the number of bins the second dimension, or an error message if the derived object does not have this member

Definition at line 408 of file Triplet.h.

◆ put() [1/2]

virtual void cbl::triplets::Triplet::put	(	const double	r12,
		const double	r13,
		const double	r23,
		const double	ww = `1.`
	)

pure virtual

estimate the distance between two objects and update the triplet vectors accordingly

Parameters

r12	distance between object1 and object2
r13	distance between object1 and object3
r23	distance between object2 and object3
ww	the weight

Implemented in cbl::triplets::Triplet2D, cbl::triplets::Triplet1D_comoving_costheta, cbl::triplets::Triplet1D_comoving_side, cbl::triplets::Triplet1D_multipoles_direct, and cbl::triplets::Triplet1D_comoving_theta.

◆ put() [2/2]

virtual void cbl::triplets::Triplet::put	(	const std::shared_ptr< catalogue::Object >	obj1,
		const std::shared_ptr< catalogue::Object >	obj2,
		const std::shared_ptr< catalogue::Object >	obj3
	)

pure virtual

estimate the distance between three objects and update the triplet vectors accordingly

Parameters

obj1	pointer to an object of class Object
obj2	pointer to an object of class Object
obj3	pointer to an object of class Object

Implemented in cbl::triplets::Triplet2D, cbl::triplets::Triplet1D_comoving_costheta, cbl::triplets::Triplet1D_comoving_side, cbl::triplets::Triplet1D_multipoles_direct, and cbl::triplets::Triplet1D_comoving_theta.

◆ r12()

virtual double cbl::triplets::Triplet::r12 ( ) const

inlinevirtual

get the private member m_r12

Returns: the size of r₁₂, or an error message if the derived object does not have this member

Reimplemented in cbl::triplets::Triplet1D.

Definition at line 285 of file Triplet.h.

◆ r12_binSize()

virtual double cbl::triplets::Triplet::r12_binSize ( ) const

inlinevirtual

get the private member m_r12

Returns: the size of the r₁₂ bin, or an error message if the derived object does not have this member

Reimplemented in cbl::triplets::Triplet1D.

Definition at line 292 of file Triplet.h.

◆ r12_binSize_D1()

virtual double cbl::triplets::Triplet::r12_binSize_D1 ( ) const

inlinevirtual

get the protected member Triplet1D::m_r12_binSize_D1

Returns: the size of r₁₂ bin in the first dimension, or an error message if the derived object does not have this member

Reimplemented in cbl::triplets::Triplet2D.

Definition at line 336 of file Triplet.h.

◆ r12_binSize_D2()

virtual double cbl::triplets::Triplet::r12_binSize_D2 ( ) const

inlinevirtual

get the protected member Triplet1D::m_r12_binSize_D1

Returns: the size of r₁₂ bin in the second dimension, or an error message if the derived object does not have this member

Reimplemented in cbl::triplets::Triplet2D.

Definition at line 384 of file Triplet.h.

◆ r12_D1()

virtual double cbl::triplets::Triplet::r12_D1 ( ) const

inlinevirtual

get the protected member Triplet1D::m_r12_D1

Returns: the size of r₁₂ in the first dimension, or an error message if the derived object does not have this member

Reimplemented in cbl::triplets::Triplet2D.

Definition at line 328 of file Triplet.h.

◆ r12_D2()

virtual double cbl::triplets::Triplet::r12_D2 ( ) const

inlinevirtual

get the protected member Triplet1D::m_r12_D1

Returns: the size of r₁₂ in the second dimension, or an error message if the derived object does not have this member

Reimplemented in cbl::triplets::Triplet2D.

Definition at line 376 of file Triplet.h.

◆ r13()

virtual double cbl::triplets::Triplet::r13 ( ) const

inlinevirtual

get the private member m_side_u

Returns: the size of r₁₃, or an error message if the derived object does not have this member

Reimplemented in cbl::triplets::Triplet1D.

Definition at line 299 of file Triplet.h.

◆ r13_binSize()

virtual double cbl::triplets::Triplet::r13_binSize ( ) const

inlinevirtual

get the private member m_side_u

Returns: the size of r₁₃ bin, or an error message if the derived object does not have this member

Reimplemented in cbl::triplets::Triplet1D.

Definition at line 306 of file Triplet.h.

◆ r13_binSize_D1()

virtual double cbl::triplets::Triplet::r13_binSize_D1 ( ) const

inlinevirtual

get the protected member Triplet1D::m_r13_binSize_D1

Returns: the size of r₁₃ bin in the first dimension, or an error message if the derived object does not have this member

Reimplemented in cbl::triplets::Triplet2D.

Definition at line 352 of file Triplet.h.

◆ r13_binSize_D2()

virtual double cbl::triplets::Triplet::r13_binSize_D2 ( ) const

inlinevirtual

get the protected member Triplet1D::m_r13_binSize_D2

Returns: the size of r₁₃ bin in the second dimension, or an error message if the derived object does not have this member

Reimplemented in cbl::triplets::Triplet2D.

Definition at line 400 of file Triplet.h.

◆ r13_D1()

virtual double cbl::triplets::Triplet::r13_D1 ( ) const

inlinevirtual

get the protected member Triplet1D::m_r13_D1

Returns: the size of r₁₃ in the first dimension, or an error message if the derived object does not have this member

Reimplemented in cbl::triplets::Triplet2D.

Definition at line 344 of file Triplet.h.

◆ r13_D2()

virtual double cbl::triplets::Triplet::r13_D2 ( ) const

inlinevirtual

get the protected member Triplet1D::m_r13_D2

Returns: the size of r₁₃ in the second dimension, or an error message if the derived object does not have this member

Reimplemented in cbl::triplets::Triplet2D.

Definition at line 392 of file Triplet.h.

◆ scale() [1/2]

virtual std::vector<double> cbl::triplets::Triplet::scale ( ) const

inlinevirtual

get the protected member m_scale

Returns: the vector containing the binned scales

Reimplemented in cbl::triplets::Triplet1D.

Definition at line 221 of file Triplet.h.

◆ scale() [2/2]

virtual double cbl::triplets::Triplet::scale ( const int i ) const

inlinevirtual

get the protected member m_scale[i]

Parameters

i	the bin index

Returns: the i-th binned scale

Reimplemented in cbl::triplets::Triplet1D.

Definition at line 214 of file Triplet.h.

◆ scale_D1() [1/2]

virtual std::vector<double> cbl::triplets::Triplet::scale_D1 ( ) const

inlinevirtual

get the protected member m_scale_D1

Returns: the vector containing the binned scales

Reimplemented in cbl::triplets::Triplet2D.

Definition at line 251 of file Triplet.h.

◆ scale_D1() [2/2]

virtual double cbl::triplets::Triplet::scale_D1 ( const int i ) const

inlinevirtual

get the protected member m_scale_D1[i]

Parameters

i	the bin index in the first dimension

Returns: the i-th binned scale

Reimplemented in cbl::triplets::Triplet2D.

Definition at line 245 of file Triplet.h.

◆ scale_D2() [1/2]

virtual std::vector<double> cbl::triplets::Triplet::scale_D2 ( ) const

inlinevirtual

get the protected member m_scale_D2

Returns: the vector containing the binned scales

Reimplemented in cbl::triplets::Triplet2D.

Definition at line 264 of file Triplet.h.

◆ scale_D2() [2/2]

virtual double cbl::triplets::Triplet::scale_D2 ( const int i ) const

inlinevirtual

get the protected member m_scale_D2[i]

Parameters

i	the bin index in the first dimension

Returns: the i-th binned scale

Reimplemented in cbl::triplets::Triplet2D.

Definition at line 258 of file Triplet.h.

◆ set_triplet()

virtual void cbl::triplets::Triplet::set_triplet	(	const int	klin,
		const double	ww = `1.`
	)

pure virtual

update the triplet

Parameters

klin	triplet bin
ww	the weight

Implemented in cbl::triplets::Triplet2D, cbl::triplets::Triplet1D_comoving_costheta, cbl::triplets::Triplet1D_comoving_side, cbl::triplets::Triplet1D_comoving_theta, and cbl::triplets::Triplet1D_multipoles_direct.

◆ set_TT1D()

virtual void cbl::triplets::Triplet::set_TT1D	(	const int	i,
		const double	tt
	)

inlinevirtual

set the member m_TT1D[i]

Parameters

i	the bin index
tt	the number of triplets in the bin

Reimplemented in cbl::triplets::Triplet1D.

Definition at line 431 of file Triplet.h.

◆ Sum()

virtual void cbl::triplets::Triplet::Sum	(	const std::shared_ptr< Triplet >	tt,
		const double	ww = `1.`
	)

pure virtual

sum the number of triplets

Parameters

tt	pointer to an object of class Triplet
ww	the weight

Implemented in cbl::triplets::Triplet2D, and cbl::triplets::Triplet1D.

◆ tripletDim()

Dim cbl::triplets::Triplet::tripletDim ( ) const

inline

get the dimension of the triplet vectors

Returns: the dimension of the triplet vectors

Definition at line 199 of file Triplet.h.

◆ tripletType()

TripletType cbl::triplets::Triplet::tripletType ( ) const

inline

get the triplet type

Returns: the triplet type

Definition at line 206 of file Triplet.h.

◆ TT1D() [1/2]

virtual std::vector<double> cbl::triplets::Triplet::TT1D ( ) const

inlinevirtual

get the private member m_TT1D

Returns: the vector containing the number of triplets in linear bins, or an error message if the derived object does not have this member

Reimplemented in cbl::triplets::Triplet1D.

Definition at line 238 of file Triplet.h.

◆ TT1D() [2/2]

virtual double cbl::triplets::Triplet::TT1D ( const int i ) const

inlinevirtual

get the private member m_TT1D[i]

Parameters

i	the bin index

Returns: the number of triplets in the i-th angular bin, or an error message if the derived object does not have this member

Reimplemented in cbl::triplets::Triplet1D.

Definition at line 230 of file Triplet.h.

◆ TT2D() [1/2]

virtual std::vector<std::vector<double> > cbl::triplets::Triplet::TT2D ( ) const

inlinevirtual

get the protected member m_TT2D

Returns: the vector containing the binned number of pairs

Reimplemented in cbl::triplets::Triplet2D.

Definition at line 278 of file Triplet.h.

◆ TT2D() [2/2]

virtual double cbl::triplets::Triplet::TT2D	(	const int	i,
		const int	j
	)		const

inlinevirtual

get the protected member m_TT2D[i]

Parameters

i	the bin index in the first dimension
j	the bin index in the second dimension

Returns: the number of pairs in the i-th bin

Reimplemented in cbl::triplets::Triplet2D.

Definition at line 272 of file Triplet.h.

The documentation for this class was generated from the following files:

Headers/Triplet.h
Measure/ThreePointCorrelation/Triplet.cpp

Public Member Functions

Protected Attributes

Private Member Functions

Constructors/destructors

Detailed Description

Member Function Documentation

◆ add_TT1D()

◆ binSize()

◆ binSize_D1()

◆ binSize_D2()

◆ Create()

◆ get_triplet()

◆ nbins()

◆ nbins_D1()

◆ nbins_D2()

◆ put() [1/2]

◆ put() [2/2]

◆ r12()

◆ r12_binSize()

◆ r12_binSize_D1()

◆ r12_binSize_D2()

◆ r12_D1()

◆ r12_D2()

◆ r13()

◆ r13_binSize()

◆ r13_binSize_D1()

◆ r13_binSize_D2()

◆ r13_D1()

◆ r13_D2()

◆ scale() [1/2]

◆ scale() [2/2]

◆ scale_D1() [1/2]

◆ scale_D1() [2/2]

◆ scale_D2() [1/2]

◆ scale_D2() [2/2]

◆ set_triplet()

◆ set_TT1D()

◆ Sum()

◆ tripletDim()

◆ tripletType()

◆ TT1D() [1/2]

◆ TT1D() [2/2]

◆ TT2D() [1/2]

◆ TT2D() [2/2]
