#include <NumberCounts2D.h>

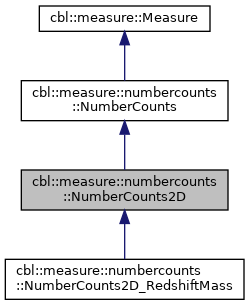

Inheritance diagram for cbl::measure::numbercounts::NumberCounts2D:

[legend]

Collaboration diagram for cbl::measure::numbercounts::NumberCounts2D:

Public Member Functions
Constructors/destructors
	NumberCounts2D ()
	default constructor More...

virtual	~NumberCounts2D ()=default
	default destructor

	NumberCounts2D (const catalogue::Var var1, const BinType bin_type1, const catalogue::Var var2, const BinType bin_type2, const catalogue::Catalogue data, const size_t nbins1, const size_t nbins2, const double minVar1=par::defaultDouble, const double maxVar1=par::defaultDouble, const double minVar2=par::defaultDouble, const double maxVar2=par::defaultDouble, const double shift1=0.5, const double shift2=0.5, const glob::HistogramType hist_type=glob::HistogramType::_N_V_, const double fact=1.)
	constructor More...

	NumberCounts2D (const catalogue::Var var1, const catalogue::Var var2, const std::vector< double > vec_edges1, const std::vector< double > vec_edges2, const catalogue::Catalogue data, const glob::HistogramType hist_type=glob::HistogramType::_N_V_, const double fact=1.)
	constructor More...

Member functions to measure the number counts
void	measure (const ErrorType errorType=ErrorType::_Poisson_, const std::string dir_output_resample=par::defaultString, const int nResamplings=0, const int seed=3213, const bool conv=false, const double sigma=0.) override
	measure the number counts More...

void	compute_covariance (const std::vector< std::shared_ptr< glob::Histogram >> histo, const bool JK) override
	compute the covariance matrix More...

std::shared_ptr< data::Data >	Gaussian_smoothing (const double sigma) override
	apply a Gaussian filter to the distribution More...

Input/Output member functions (customized in all the derived classes)
void	write (const std::string dir=par::defaultString, const std::string file=par::defaultString, const int rank=0) const override
	write the measured number counts More...

void	write_covariance (const std::string dir, const std::string file) const override
	write measured covariance matrix More...

Public Member Functions inherited from cbl::measure::numbercounts::NumberCounts
	NumberCounts ()=default
	default constructor

virtual	~NumberCounts ()=default
	default destructor

void	set_data (const catalogue::Catalogue data)
	add a data catalogue More...

std::shared_ptr< catalogue::Catalogue >	catalogue ()
	function to get the protected member m_data More...

std::shared_ptr< glob::Histogram >	histogram ()
	return the binned counts More...

glob::HistogramType	HistogramType ()
	return the type of histogram normalization More...

double	fact ()
	return the normalization factor More...

Public Member Functions inherited from cbl::measure::Measure
	Measure ()=default
	default constructor

virtual	~Measure ()=default
	default destructor

virtual std::shared_ptr< data::Data >	dataset () const
	get the protected member dataset More...

Protected Member Functions
Protected member functions to measure the number counts
std::shared_ptr< data::Data >	m_measurePoisson () override
	measure the number counts with Poisson errors More...

std::shared_ptr< data::Data >	m_measureJackknife (const std::string dir_output_resample=par::defaultString) override
	measure the number counts with Jackknife covariance matrix More...

std::shared_ptr< data::Data >	m_measureBootstrap (const std::string dir_output_resample=par::defaultString, const int nResamplings=0, const int seed=3213) override
	measure the number counts with Bootstrap covariance matrix More...

Protected member functions to measure the number counts

Protected Attributes
catalogue::Var	m_Var1
	the first catalogue variable to bin

catalogue::Var	m_Var2
	the second catalogue variable to bin

Protected Attributes inherited from cbl::measure::numbercounts::NumberCounts
std::shared_ptr< catalogue::Catalogue >	m_data
	input data catalogue

glob::HistogramType	m_HistogramType
	the histogram type

double	m_fact
	the normalization factor

std::shared_ptr< glob::Histogram >	m_histogram
	number counts type

Protected Attributes inherited from cbl::measure::Measure
std::shared_ptr< data::Data >	m_dataset
	the dataset of the measure

Detailed Description

The class NumberCounts2D.

"Headers/NumberCounts2D.h"

This is the base class used to measure the number counts of one variable

Definition at line 67 of file NumberCounts2D.h.

Constructor & Destructor Documentation

◆ NumberCounts2D() [1/3]

cbl::measure::numbercounts::NumberCounts2D::NumberCounts2D ( )

inline

default constructor

2D

Definition at line 130 of file NumberCounts2D.h.

◆ NumberCounts2D() [2/3]

cbl::measure::numbercounts::NumberCounts2D::NumberCounts2D	(	const catalogue::Var	var1,
		const BinType	bin_type1,
		const catalogue::Var	var2,
		const BinType	bin_type2,
		const catalogue::Catalogue	data,
		const size_t	nbins1,
		const size_t	nbins2,
		const double	minVar1 = `par::defaultDouble`,
		const double	maxVar1 = `par::defaultDouble`,
		const double	minVar2 = `par::defaultDouble`,
		const double	maxVar2 = `par::defaultDouble`,
		const double	shift1 = `0.5`,
		const double	shift2 = `0.5`,
		const glob::HistogramType	hist_type = `glob::HistogramType::_N_V_`,
		const double	fact = `1.`
	)

constructor

Parameters

var1	the first variable type
bin_type1	the first bin type
var2	the second variable type
bin_type2	the second bin type
data	object of class Catalogue
nbins1	the number of bins for the first variable
nbins2	the number of bins for the second variable
minVar1	minimum range for the first variable
maxVar1	maximmum range for the first variable
minVar2	minimum range for the second variable
maxVar2	maximmum range for the second variable
shift1	bin shift for the first variable
shift2	bin shift for the second variable
hist_type	the type of histogram
fact	factor used to normalized the distribution

Definition at line 47 of file NumberCounts2D.cpp.

◆ NumberCounts2D() [3/3]

cbl::measure::numbercounts::NumberCounts2D::NumberCounts2D	(	const catalogue::Var	var1,
		const catalogue::Var	var2,
		const std::vector< double >	vec_edges1,
		const std::vector< double >	vec_edges2,
		const catalogue::Catalogue	data,
		const glob::HistogramType	hist_type = `glob::HistogramType::_N_V_`,
		const double	fact = `1.`
	)

constructor

Parameters

var1	the first variable type
var2	the second variable type
vec_edges1	the bin edges for var1
vec_edges2	the bin edges for var2
data	object of class Catalogue
hist_type	the type of histogram
fact	factor used to normalized the distribution

Definition at line 71 of file NumberCounts2D.cpp.

Member Function Documentation

◆ compute_covariance()

void cbl::measure::numbercounts::NumberCounts2D::compute_covariance	(	const std::vector< std::shared_ptr< glob::Histogram >>	histo,
		const bool	JK
	)

overridevirtual

compute the covariance matrix

Parameters

histo	vector containing the measures used to compute the covariance matrix
JK	true → compute the jackknife covariance matrix; false compute the standard covariance matrix

Reimplemented from cbl::measure::numbercounts::NumberCounts.

Definition at line 254 of file NumberCounts2D.cpp.

◆ Gaussian_smoothing()

shared_ptr< data::Data > cbl::measure::numbercounts::NumberCounts2D::Gaussian_smoothing ( const double sigma )

overridevirtual

apply a Gaussian filter to the distribution

Parameters

σ	of the Gaussian kernel

Returns: pointer to object of type Data

Reimplemented from cbl::measure::numbercounts::NumberCounts.

Definition at line 295 of file NumberCounts2D.cpp.

◆ m_measureBootstrap()

shared_ptr< data::Data > cbl::measure::numbercounts::NumberCounts2D::m_measureBootstrap	(	const std::string	dir_output_resample = `par::defaultString`,
		const int	nResamplings = `0`,
		const int	seed = `3213`
	)

overrideprotectedvirtual

measure the number counts with Bootstrap covariance matrix

Parameters

dir_output_resample	output directory of the resampling correlation functions
nResamplings	number of resampling used for bootstrap
seed	the seed for random number generation

Returns: pointer to object of type Data

Reimplemented from cbl::measure::numbercounts::NumberCounts.

Definition at line 189 of file NumberCounts2D.cpp.

◆ m_measureJackknife()

shared_ptr< data::Data > cbl::measure::numbercounts::NumberCounts2D::m_measureJackknife ( const std::string dir_output_resample = par::defaultString )

overrideprotectedvirtual

measure the number counts with Jackknife covariance matrix

Parameters

dir_output_resample output directory of the resampling correlation functions

Returns: pointer to object of type Data

Reimplemented from cbl::measure::numbercounts::NumberCounts.

Definition at line 151 of file NumberCounts2D.cpp.

◆ m_measurePoisson()

shared_ptr< data::Data > cbl::measure::numbercounts::NumberCounts2D::m_measurePoisson ( )

overrideprotectedvirtual

measure the number counts with Poisson errors

Returns: none

Reimplemented from cbl::measure::numbercounts::NumberCounts.

Definition at line 98 of file NumberCounts2D.cpp.

◆ measure()

void cbl::measure::numbercounts::NumberCounts2D::measure	(	const ErrorType	errorType = `ErrorType::_Poisson_`,
		const std::string	dir_output_resample = `par::defaultString`,
		const int	nResamplings = `0`,
		const int	seed = `3213`,
		const bool	conv = `false`,
		const double	sigma = `0.`
	)

overridevirtual

measure the number counts

Parameters

errorType	type of error
dir_output_resample	output directory of the resampling correlation functions
nResamplings	number of resampling used for bootstrap
seed	the seed for random number generation
conv	true → compute the Gaussian convolvolution of the distribution; false → do not convolve
sigma	σ of the Gaussian kernel

Reimplemented from cbl::measure::numbercounts::NumberCounts.

Definition at line 231 of file NumberCounts2D.cpp.

◆ write()

void cbl::measure::numbercounts::NumberCounts2D::write	(	const std::string	dir = `par::defaultString`,
		const std::string	file = `par::defaultString`,
		const int	rank = `0`
	)		const

overridevirtual

write the measured number counts

Parameters

dir	output directory
file	output file
rank	cpu index (for MPI usage)

Reimplemented from cbl::measure::numbercounts::NumberCounts.

Definition at line 272 of file NumberCounts2D.cpp.

◆ write_covariance()

void cbl::measure::numbercounts::NumberCounts2D::write_covariance	(	const std::string	dir,
		const std::string	file
	)		const

overridevirtual

write measured covariance matrix

Parameters

dir	output directory
file	output file

Reimplemented from cbl::measure::numbercounts::NumberCounts.

Definition at line 286 of file NumberCounts2D.cpp.

The documentation for this class was generated from the following files:

Headers/NumberCounts2D.h
Measure/NumberCounts/NumberCounts2D.cpp
