#include "Headers/ChainMesh.h"

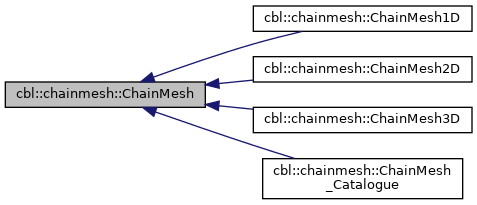

Inheritance diagram for cbl::chainmesh::ChainMesh:

[legend]

Public Member Functions
	ChainMesh ()=default
	default constructor

	ChainMesh (const double cell_size, const long nDim)
	constructor More...

	~ChainMesh ()=default
	default destructor

void	set_par (const double cell_size, const long nDim)
	function that set parameters for the chain-mesh More...

long	nCell () const
	get the private member ChainMesh::m_nCell_tot More...

long	nCell_NonEmpty () const
	get the private member ChainMesh::m_nCell_NonEmpty More...

std::vector< long >	NonEmpty_Cells () const
	get the private member ChainMesh::m_NonEmpty_Cells More...

long	pos_to_index (const std::vector< double > center) const
	get the index of the cell given the object coordinates More...

long	inds_to_index (const std::vector< long > indx) const
	get the unique index of the cell given the n indices More...

void	index_to_inds (const long index, const std::vector< long > nn, std::vector< long > &indx) const
	get the n indices given the unique index More...

void	create_chain_mesh (const std::vector< std::vector< double > > data, const double rMax, const double rMin=-1., const long nMAX=300, const long nMIN=10)
	create the chain mesh More...

void	create_chain_mesh_m2 (const std::vector< std::vector< double > > data)
	create the chain mesh More...

void	get_searching_region (const double r_max, const double r_min=-1.)
	set the internal variable m_search_region, the list of cell around a generic center More...

std::vector< long >	close_objects_cell (const int cell_index, long ii=-1) const
	get the indeces of the objects close to a cell More...

std::vector< long >	close_objects (std::vector< double > center, long ii=-1) const
	get the indeces of the objects close to an object More...

void	normalize (std::vector< std::vector< double >> points, std::vector< double > values, const double rMAX)
	function to set a normalized (square/cubic) grid from a sample of points, used for the N-dim interpolation More...

double	interpolate (std::vector< double > xi, const int distNum)
	N-dim interpolation of a set of N coordinates on a normalised grid (see normalize) More...

std::vector< double >	interpolate (std::vector< std::vector< double >> points, std::vector< double > values, std::vector< std::vector< double >> xi, const int distNum, const double rMAX)
	N-dim interpolation. More...

std::vector< long >	get_list (const long cell_index) const
	get the index of the object inside a cell More...

Protected Attributes
int	m_nDim
	the number of dimension

std::vector< long >	m_cell_to_index
	indexes in the i-th cell

double	m_cell_size
	the size of the cell in unit of the interested quantity

std::vector< long >	m_List
	list of internal use

std::vector< long >	m_Label
	array containing the last particle of the chain-mesh in each cell

std::vector< std::vector< long > >	m_List_index
	index list of internal use

std::vector< std::vector< double > >	m_Lim
	Min,Max limits of variable(s) used for the chain-mesh.

std::vector< double >	m_Delta
	Max-Min of variable(s) used for the chain-mesh.

std::vector< long >	m_nCell
	number of cell(s) for variable(s)

std::vector< long >	m_search_region
	the list of cell around a generic center

long	m_nCell_tot
	the total number of cells

long	m_nCell_NonEmpty
	the number of non-empty cells

std::vector< long >	m_NonEmpty_Cells
	the total number of non-empty cells

std::vector< long >	m_multCell
	multiplicative factor to compute the projected number of cells

std::vector< std::vector< double > >	m_points
	the vector containing the sample points for the n-dim interpolation

std::vector< double >	m_values
	the vector containing the values of the n-dim function on the sample points

std::vector< std::vector< double > >	m_extremals
	the vector containing the extremals of the sample points coordinates

std::vector< double >	m_delta
	vetors of differences between the extremals of the sample points coordinates

double	m_rMAX
	the maximum radius for the search of close points in the chain mesh

double	m_rMIN
	the minimum radius for the search of close points in the chain mesh

Detailed Description

The class ChainMesh.

This class is used to handle objects of type ChainMesh

Definition at line 60 of file ChainMesh.h.

Constructor & Destructor Documentation

◆ ChainMesh()

cbl::chainmesh::ChainMesh::ChainMesh	(	const double	cell_size,
		const long	nDim
	)

constructor

Parameters

cell_size	double storing the cell size
nDim	the number of dimensions

Definition at line 64 of file ChainMesh.cpp.

Member Function Documentation

◆ close_objects()

vector< long > cbl::chainmesh::ChainMesh::close_objects	(	std::vector< double >	center,
		long	ii = `-1`
	)		const

get the indeces of the objects close to an object

Parameters

center	coordinates of an object
ii	the minimum index given in output

Returns: vector containing the index of the objects inside the cell

Definition at line 298 of file ChainMesh.cpp.

◆ close_objects_cell()

vector< long > cbl::chainmesh::ChainMesh::close_objects_cell	(	const int	cell_index,
		long	ii = `-1`
	)		const

get the indeces of the objects close to a cell

Parameters

cell_index	the cell index
ii	the minimum index given in output

Returns: vector containing the index of the objects inside the cell

Definition at line 271 of file ChainMesh.cpp.

◆ create_chain_mesh()

void cbl::chainmesh::ChainMesh::create_chain_mesh	(	const std::vector< std::vector< double > >	data,
		const double	rMax,
		const double	rMin = `-1.`,
		const long	nMAX = `300`,
		const long	nMIN = `10`
	)

create the chain mesh

Parameters

data	the vector containing the coordinate of the object
rMax	the maximum radius, to set the interal variable m_search_region
rMin	the minimum radius, to set the interal variable m_search_region
nMAX	maximum number of cells
nMIN	minimum number of cells

Definition at line 133 of file ChainMesh.cpp.

◆ create_chain_mesh_m2()

void cbl::chainmesh::ChainMesh::create_chain_mesh_m2 ( const std::vector< std::vector< double > > data )

create the chain mesh

Parameters

data	the vector containing the coordinate of the object

Definition at line 196 of file ChainMesh.cpp.

◆ get_list()

vector< long > cbl::chainmesh::ChainMesh::get_list ( const long cell_index ) const

get the index of the object inside a cell

Parameters

cell_index the cell index

Returns: vector containing the index of the objects inside the cell

Definition at line 526 of file ChainMesh.cpp.

◆ get_searching_region()

void cbl::chainmesh::ChainMesh::get_searching_region	(	const double	r_max,
		const double	r_min = `-1.`
	)

set the internal variable m_search_region, the list of cell around a generic center

Parameters

r_max	the maximum radius
r_min	the minimum radius

Definition at line 226 of file ChainMesh.cpp.

◆ index_to_inds()

void cbl::chainmesh::ChainMesh::index_to_inds	(	const long	index,
		const std::vector< long >	nn,
		std::vector< long > &	indx
	)		const

get the n indices given the unique index

Parameters

index	the unique index
nn	the number of cells along the box axis
indx	vector of the indices of the nD space cell

Definition at line 112 of file ChainMesh.cpp.

◆ inds_to_index()

long cbl::chainmesh::ChainMesh::inds_to_index ( const std::vector< long > indx ) const

get the unique index of the cell given the n indices

Parameters

indx	vector of the indices of the nD space cell

Returns: the cell unique index

Definition at line 95 of file ChainMesh.cpp.

◆ interpolate() [1/2]

double cbl::chainmesh::ChainMesh::interpolate	(	std::vector< double >	xi,
		const int	distNum
	)

N-dim interpolation of a set of N coordinates on a normalised grid (see normalize)

Parameters

xi	the input coordinates that has to be interpolated
distNum	the number of closest points on which the average will be done

Returns: the interpolated value at the input coordinates

Definition at line 387 of file ChainMesh.cpp.

◆ interpolate() [2/2]

vector< double > cbl::chainmesh::ChainMesh::interpolate	(	std::vector< std::vector< double >>	points,
		std::vector< double >	values,
		std::vector< std::vector< double >>	xi,
		const int	distNum,
		const double	rMAX
	)

N-dim interpolation.

Parameters

points	sample points
values	sample values
xi	the coordinates to be interpolated
distNum	the number of closest points on which the average will be done
rMAX	the maximum radius, to set the interal variable m_search_region

Returns: values interolated at the input coordinates

Definition at line 442 of file ChainMesh.cpp.

◆ nCell()

long cbl::chainmesh::ChainMesh::nCell ( ) const

inline

get the private member ChainMesh::m_nCell_tot

Returns: total number of cells

Definition at line 156 of file ChainMesh.h.

◆ nCell_NonEmpty()

long cbl::chainmesh::ChainMesh::nCell_NonEmpty ( ) const

inline

get the private member ChainMesh::m_nCell_NonEmpty

Returns: number of non-empty cells

Definition at line 162 of file ChainMesh.h.

◆ NonEmpty_Cells()

std::vector<long> cbl::chainmesh::ChainMesh::NonEmpty_Cells ( ) const

inline

get the private member ChainMesh::m_NonEmpty_Cells

Returns: indexes of non-empty cells

Definition at line 168 of file ChainMesh.h.

◆ normalize()

void cbl::chainmesh::ChainMesh::normalize	(	std::vector< std::vector< double >>	points,
		std::vector< double >	values,
		const double	rMAX
	)

function to set a normalized (square/cubic) grid from a sample of points, used for the N-dim interpolation

Parameters

points	sample points
values	the data on the sample points
rMAX	the maximum radius, to set the internal variable m_search_region

Definition at line 349 of file ChainMesh.cpp.

◆ pos_to_index()

long cbl::chainmesh::ChainMesh::pos_to_index ( const std::vector< double > center ) const

get the index of the cell given the object coordinates

Parameters

center the object coordinates

Returns: the cell index

Definition at line 73 of file ChainMesh.cpp.

◆ set_par()

void cbl::chainmesh::ChainMesh::set_par	(	const double	cell_size,
		const long	nDim
	)

function that set parameters for the chain-mesh

Parameters

cell_size	double storing the cell size
nDim	the number of dimensions

Definition at line 45 of file ChainMesh.cpp.

The documentation for this class was generated from the following files:

Headers/ChainMesh.h
ChainMesh/ChainMesh.cpp
