#include "Headers/Field3D.h"

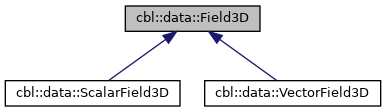

Inheritance diagram for cbl::data::Field3D:

Public Member Functions
Constructors/destructors
	Field3D ()=default
	default constructor

	Field3D (const double deltaR, const double minX, const double maxX, const double minY, const double maxY, const double minZ, const double maxZ)
	constructor More...

	Field3D (const int nx, const int ny, const int nz, const double minX, const double maxX, const double minY, const double maxY, const double minZ, const double maxZ)
	constructor More...

virtual	~Field3D ()=default
	default destructor

Member functions to set the private/protected members
void	set_parameters (const double deltaR, const double minX, const double maxX, const double minY, const double maxY, const double minZ, const double maxZ)
	set the parameters More...

void	set_parameters (const int nx, const int ny, const int nz, const double minX, const double maxX, const double minY, const double maxY, const double minZ, const double maxZ)
	set the parameters More...

Member functions to get the private/protected members
int	nx () const
	get the private member m_nX More...

int	ny () const
	get the private member m_nY More...

int	nz () const
	get the private member m_nZ More...

int	nzFourier () const
	get the private member m_nZF More...

int	nCells () const
	get the private member m_nCells More...

int	nCellsFourier () const
	get the private member m_nCells_Fourier More...

double	MinX () const
	get the private member m_MinX More...

double	MinY () const
	get the private member m_MinY More...

double	MinZ () const
	get the private member m_MinZ More...

double	MaxX () const
	get the private member m_MaxX More...

double	MaxY () const
	get the private member m_MaxY More...

double	MaxZ () const
	get the private member m_MaxZ More...

double	deltaX () const
	get the private member m_deltaX More...

double	deltaY () const
	get the private member m_deltaY More...

double	deltaZ () const
	get the private member m_deltaZ More...

double	Volume () const
	get the private member m_Volume More...

double	XX (const int i) const
	get the value of the X coordinates at the i-th cell More...

double	YY (const int i) const
	get the value of the Y coordinates at the i-th cell More...

double	ZZ (const int i) const
	get the value of the Z coordinates at the i-th cell More...

double	kX (const int i) const
	get the value of the X coordinates at the i-th cell, Fourier space More...

double	kY (const int i) const
	get the value of the Y coordinates at the i-th cell, Fourier space More...

double	kZ (const int i) const
	get the value of the Z coordinates at the i-th cell, Fourier space More...

virtual double	ScalarField (const int i, const int j, const int k) const
	get the value of the scalar field More...

virtual double	ScalarField (const std::vector< double > pos) const
	get the value of the scalar field More...

virtual std::vector< double >	ScalarField () const
	get the value of the scalar field More...

virtual std::vector< double >	VectorField (const int i, const int j, const int k) const
	get the value of the vector field More...

virtual std::vector< double >	VectorField (const std::vector< double > pos) const
	get the value of the vector field More...

virtual double	ScalarField_FourierSpace_real (const int i, const int j, const int k) const
	get the value of the scalar field, Fourier space, real part More...

virtual double	ScalarField_FourierSpace_complex (const int i, const int j, const int k) const
	get the value of the scalar field, Fourier space, complex part More...

virtual std::vector< double >	ScalarField_FourierSpace_real () const
	get the value of the scalar field, Fourier space, real part More...

virtual std::vector< double >	ScalarField_FourierSpace_complex () const
	get the value of the scalar field, Fourier space, complex part More...

virtual std::vector< double >	VectorField_FourierSpace_real (const int i, const int j, const int k) const
	get the value of the vector field, Fourier space, real part More...

virtual std::vector< double >	VectorField_FourierSpace_complex (const int i, const int j, const int k) const
	get the value of the vector field, Fourier space, complex part More...

Member functions to compute data properties
virtual void	FourierTransformField ()
	perform the Fourier transform on the field

virtual void	FourierAntiTransformField ()
	perform the anti-Fourier transform on the field

virtual void	GaussianConvolutionField (const double kernel_size)
	perform a smoothing of the field with a gaussian kernel More...

virtual void	set_ScalarField (const double value, const int i, const int j, const int k, const bool add=0)
	set the value of the scalar field More...

virtual void	set_VectorField (const std::vector< double > value, const int i, const int j, const int k, const bool add=0)
	set the value of the vectorr field More...

virtual void	set_ScalarField_FourierSpace_real (const double value, const int i, const int j, const int k, const bool add=0)
	set the value of the scalar field in Fourier space, real part More...

virtual void	set_ScalarField_FourierSpace_complex (const double value, const int i, const int j, const int k, const bool add=0)
	set the value of the scalar field in Fourier space, complex part More...

virtual void	set_VectorField_FourierSpace_real (const std::vector< double > value, const int i, const int j, const int k, const bool add=0)
	set the value of the vector field, Fourier space, real part More...

virtual void	set_VectorField_FourierSpace_complex (const std::vector< double > value, const int i, const int j, const int k, const bool add=0)
	set the value of the vector field, Fourier space, complex part More...

virtual void	reset ()
	set to 0 the fields

Protected Member Functions
long int	inds_to_index (const int i, const int j, const int k) const
	contract 3 indeces into one More...

long int	inds_to_index_Fourier (const int i, const int j, const int k) const
	contract 3 indeces into one, Fourier space More...

Protected Attributes
int	m_nX
	number of cells along the x-axis

int	m_nY
	number of cells along the y-axis

int	m_nZ
	number of cells along the z-axis

int	m_nZF
	number of cells along the z-axis, Fourier space

int	m_nCells
	number of cells

int	m_nCells_Fourier
	number of cells, Fourier space

double	m_deltaX
	X cell size.

double	m_deltaY
	Y cell size.

double	m_deltaZ
	Z cell size.

double	m_MinX
	lower x bound

double	m_MinY
	lower y bound

double	m_MinZ
	lower z bound

double	m_MaxX
	upper x bound

double	m_MaxY
	upper y bound

double	m_MaxZ
	upper z bound

double	m_Volume
	box volume

std::vector< double >	m_X
	coordinates of the cells along the x-axis

std::vector< double >	m_Y
	coordinates of the cells along the y-axis

std::vector< double >	m_Z
	coordinates of the cells along the z-axis

std::vector< double >	m_kX
	coordinates of the cells along the kx-axis

std::vector< double >	m_kY
	coordinates of the cells along the ky-axis

std::vector< double >	m_kZ
	coordinates of the cells along the kz-axis

Detailed Description

The class Field3D.

This class is used to handle objects of type Field3D

Definition at line 51 of file Field3D.h.

Constructor & Destructor Documentation

◆ Field3D() [1/2]

cbl::data::Field3D::Field3D	(	const double	deltaR,
		const double	minX,
		const double	maxX,
		const double	minY,
		const double	maxY,
		const double	minZ,
		const double	maxZ
	)

constructor

Parameters

deltaR	size of the cubic cells
minX	lower x bound
maxX	upper x bound
minY	lower y bound
maxY	upper y bound
minZ	lower z bound
maxZ	upper z bound

Definition at line 45 of file Field3D.cpp.

◆ Field3D() [2/2]

cbl::data::Field3D::Field3D	(	const int	nx,
		const int	ny,
		const int	nz,
		const double	minX,
		const double	maxX,
		const double	minY,
		const double	maxY,
		const double	minZ,
		const double	maxZ
	)

constructor

Parameters

nx	number of x-axis cells
ny	number of y-axis cells
nz	number of z-axis cells
minX	lower x bound
maxX	upper x bound
minY	lower y bound
maxY	upper y bound
minZ	lower z bound
maxZ	upper z bound

Definition at line 54 of file Field3D.cpp.

Member Function Documentation

◆ deltaX()

double cbl::data::Field3D::deltaX ( ) const

inline

get the private member m_deltaX

Returns: the X cell size

Definition at line 319 of file Field3D.h.

◆ deltaY()

double cbl::data::Field3D::deltaY ( ) const

inline

get the private member m_deltaY

Returns: the Y cell size

Definition at line 325 of file Field3D.h.

◆ deltaZ()

double cbl::data::Field3D::deltaZ ( ) const

inline

get the private member m_deltaZ

Returns: the Z cell size

Definition at line 331 of file Field3D.h.

◆ GaussianConvolutionField()

virtual void cbl::data::Field3D::GaussianConvolutionField ( const double kernel_size )

inlinevirtual

perform a smoothing of the field with a gaussian kernel

Parameters

kernel_size size of the gaussian kernel

Reimplemented in cbl::data::ScalarField3D.

Definition at line 537 of file Field3D.h.

◆ inds_to_index()

long int cbl::data::Field3D::inds_to_index	(	const int	i,
		const int	j,
		const int	k
	)		const

inlineprotected

contract 3 indeces into one

Parameters

i	index of the i-th x-axis cell
j	index of the j-th y-axis cell
k	index of the k-th z-axis cell

Returns: k+nZ*(j+nY*i)

Definition at line 130 of file Field3D.h.

◆ inds_to_index_Fourier()

long int cbl::data::Field3D::inds_to_index_Fourier	(	const int	i,
		const int	j,
		const int	k
	)		const

inlineprotected

contract 3 indeces into one, Fourier space

Parameters

i	index of the i-th x-axis cell
j	index of the j-th y-axis cell
k	index of the k-th z-axis cell

Returns: k+nZF*(j+nY*i)

Definition at line 141 of file Field3D.h.

◆ kX()

double cbl::data::Field3D::kX ( const int i ) const

inline

get the value of the X coordinates at the i-th cell, Fourier space

Parameters

i	the index of the cell

Returns: the value of the center of the cell along the x-axis

Definition at line 374 of file Field3D.h.

◆ kY()

double cbl::data::Field3D::kY ( const int i ) const

inline

get the value of the Y coordinates at the i-th cell, Fourier space

Parameters

i	the index of the cell

Returns: the value of the center of the cell along the y-axis

Definition at line 384 of file Field3D.h.

◆ kZ()

double cbl::data::Field3D::kZ ( const int i ) const

inline

get the value of the Z coordinates at the i-th cell, Fourier space

Parameters

i	the index of the cell

Returns: the value of the center of the cell along the z-axis

Definition at line 394 of file Field3D.h.

◆ MaxX()

double cbl::data::Field3D::MaxX ( ) const

inline

get the private member m_MaxX

Returns: the upper x bound

Definition at line 301 of file Field3D.h.

◆ MaxY()

double cbl::data::Field3D::MaxY ( ) const

inline

get the private member m_MaxY

Returns: the upper y bound

Definition at line 307 of file Field3D.h.

◆ MaxZ()

double cbl::data::Field3D::MaxZ ( ) const

inline

get the private member m_MaxZ

Returns: the upper z bound

Definition at line 313 of file Field3D.h.

◆ MinX()

double cbl::data::Field3D::MinX ( ) const

inline

get the private member m_MinX

Returns: the lower x bound

Definition at line 283 of file Field3D.h.

◆ MinY()

double cbl::data::Field3D::MinY ( ) const

inline

get the private member m_MinY

Returns: the lower y bound

Definition at line 289 of file Field3D.h.

◆ MinZ()

double cbl::data::Field3D::MinZ ( ) const

inline

get the private member m_MinZ

Returns: the lower z bound

Definition at line 295 of file Field3D.h.

◆ nCells()

int cbl::data::Field3D::nCells ( ) const

inline

get the private member m_nCells

Returns: the number of cells

Definition at line 271 of file Field3D.h.

◆ nCellsFourier()

int cbl::data::Field3D::nCellsFourier ( ) const

inline

get the private member m_nCells_Fourier

Returns: the number of cells, Fourier space

Definition at line 277 of file Field3D.h.

◆ nx()

int cbl::data::Field3D::nx ( ) const

inline

get the private member m_nX

Returns: the number of cells along the x-axis

Definition at line 247 of file Field3D.h.

◆ ny()

int cbl::data::Field3D::ny ( ) const

inline

get the private member m_nY

Returns: the number of cells along the y-axis

Definition at line 253 of file Field3D.h.

◆ nz()

int cbl::data::Field3D::nz ( ) const

inline

get the private member m_nZ

Returns: the number of cells along the Z-axis

Definition at line 259 of file Field3D.h.

◆ nzFourier()

int cbl::data::Field3D::nzFourier ( ) const

inline

get the private member m_nZF

Returns: the number of cells along the z-axis, Fourier space

Definition at line 265 of file Field3D.h.

◆ ScalarField() [1/3]

virtual std::vector<double> cbl::data::Field3D::ScalarField ( ) const

inlinevirtual

get the value of the scalar field

Returns: the values of the scalar field

Reimplemented in cbl::data::ScalarField3D.

Definition at line 424 of file Field3D.h.

◆ ScalarField() [2/3]

virtual double cbl::data::Field3D::ScalarField	(	const int	i,
		const int	j,
		const int	k
	)		const

inlinevirtual

get the value of the scalar field

Parameters

i	the i-th cell along the x-axis
j	the j-th cell along the y-axis
k	the k-th cell along the z-axis

Returns: the value of the vector field

Reimplemented in cbl::data::ScalarField3D.

Definition at line 405 of file Field3D.h.

◆ ScalarField() [3/3]

virtual double cbl::data::Field3D::ScalarField ( const std::vector< double > pos ) const

inlinevirtual

get the value of the scalar field

Parameters

pos	vector containing the point coordinates

Returns: the value of the vector field

Reimplemented in cbl::data::ScalarField3D.

Definition at line 416 of file Field3D.h.

◆ ScalarField_FourierSpace_complex() [1/2]

virtual std::vector<double> cbl::data::Field3D::ScalarField_FourierSpace_complex ( ) const

inlinevirtual

get the value of the scalar field, Fourier space, complex part

Returns: the value of the vector field

Definition at line 486 of file Field3D.h.

◆ ScalarField_FourierSpace_complex() [2/2]

virtual double cbl::data::Field3D::ScalarField_FourierSpace_complex	(	const int	i,
		const int	j,
		const int	k
	)		const

inlinevirtual

get the value of the scalar field, Fourier space, complex part

Parameters

i	the i-th cell along the x-axis
j	the j-th cell along the y-axis
k	the k-th cell along the z-axis

Returns: the value of the scalar field, Fourier space, complex part

Reimplemented in cbl::data::ScalarField3D.

Definition at line 470 of file Field3D.h.

◆ ScalarField_FourierSpace_real() [1/2]

virtual std::vector<double> cbl::data::Field3D::ScalarField_FourierSpace_real ( ) const

inlinevirtual

get the value of the scalar field, Fourier space, real part

Returns: the values of the scalar field

Definition at line 478 of file Field3D.h.

◆ ScalarField_FourierSpace_real() [2/2]

virtual double cbl::data::Field3D::ScalarField_FourierSpace_real	(	const int	i,
		const int	j,
		const int	k
	)		const

inlinevirtual

get the value of the scalar field, Fourier space, real part

Parameters

i	the i-th cell along the x-axis
j	the j-th cell along the y-axis
k	the k-th cell along the z-axis

Returns: the values of the scalar field, Fourier space, real part

Reimplemented in cbl::data::ScalarField3D.

Definition at line 458 of file Field3D.h.

◆ set_parameters() [1/2]

void cbl::data::Field3D::set_parameters	(	const double	deltaR,
		const double	minX,
		const double	maxX,
		const double	minY,
		const double	maxY,
		const double	minZ,
		const double	maxZ
	)

set the parameters

Parameters

deltaR	size of the cubic cells
minX	lower x bound
maxX	upper x bound
minY	lower y bound
maxY	upper y bound
minZ	lower z bound
maxZ	upper z bound

Definition at line 63 of file Field3D.cpp.

◆ set_parameters() [2/2]

void cbl::data::Field3D::set_parameters	(	const int	nx,
		const int	ny,
		const int	nz,
		const double	minX,
		const double	maxX,
		const double	minY,
		const double	maxY,
		const double	minZ,
		const double	maxZ
	)

set the parameters

Parameters

nx	number of x-axis cells
ny	number of y-axis cells
nz	number of z-axis cells
minX	lower x bound
maxX	upper x bound
minY	lower y bound
maxY	upper y bound
minZ	lower z bound
maxZ	upper z bound

Definition at line 123 of file Field3D.cpp.

◆ set_ScalarField()

virtual void cbl::data::Field3D::set_ScalarField	(	const double	value,
		const int	i,
		const int	j,
		const int	k,
		const bool	add = `0`
	)

inlinevirtual

set the value of the scalar field

Parameters

value	value of the scalar field
i	the i-th cell along the x-axis
j	the j-th cell along the y-axis
k	the k-th cell along the z-axis
add	1 → add to the current value; 0 → overwrite the value

Reimplemented in cbl::data::ScalarField3D.

Definition at line 550 of file Field3D.h.

◆ set_ScalarField_FourierSpace_complex()

virtual void cbl::data::Field3D::set_ScalarField_FourierSpace_complex	(	const double	value,
		const int	i,
		const int	j,
		const int	k,
		const bool	add = `0`
	)

inlinevirtual

set the value of the scalar field in Fourier space, complex part

Parameters

value	value of the scalar field in Fourier space, complex part
i	the i-th cell along the x-axis
j	the j-th cell along the y-axis
k	the k-th cell along the z-axis
add	1 → add to the current value; 0 → overwrite the value

Reimplemented in cbl::data::ScalarField3D.

Definition at line 591 of file Field3D.h.

◆ set_ScalarField_FourierSpace_real()

virtual void cbl::data::Field3D::set_ScalarField_FourierSpace_real	(	const double	value,
		const int	i,
		const int	j,
		const int	k,
		const bool	add = `0`
	)

inlinevirtual

set the value of the scalar field in Fourier space, real part

Parameters

value	value of the scalar field in Fourier space, real part
i	the i-th cell along the x-axis
j	the j-th cell along the y-axis
k	the k-th cell along the z-axis
add	1 → add to the current value; 0 → overwrite the value

Reimplemented in cbl::data::ScalarField3D.

Definition at line 577 of file Field3D.h.

◆ set_VectorField()

virtual void cbl::data::Field3D::set_VectorField	(	const std::vector< double >	value,
		const int	i,
		const int	j,
		const int	k,
		const bool	add = `0`
	)

inlinevirtual

set the value of the vectorr field

Parameters

value	vector containing values of the vector field
i	the i-th cell along the x-axis
j	the j-th cell along the y-axis
k	the k-th cell along the z-axis
add	1 → add to the current value; 0 → overwrite the value

Reimplemented in cbl::data::VectorField3D.

Definition at line 563 of file Field3D.h.

◆ set_VectorField_FourierSpace_complex()

virtual void cbl::data::Field3D::set_VectorField_FourierSpace_complex	(	const std::vector< double >	value,
		const int	i,
		const int	j,
		const int	k,
		const bool	add = `0`
	)

inlinevirtual

set the value of the vector field, Fourier space, complex part

Parameters

value	vector containing values of the vector field, Fourier space, complex part
i	the i-th cell along the x-axis
j	the j-th cell along the y-axis
k	the k-th cell along the z-axis
add	1 → add to the current value; 0 → overwrite the value

Reimplemented in cbl::data::VectorField3D.

Definition at line 621 of file Field3D.h.

◆ set_VectorField_FourierSpace_real()

virtual void cbl::data::Field3D::set_VectorField_FourierSpace_real	(	const std::vector< double >	value,
		const int	i,
		const int	j,
		const int	k,
		const bool	add = `0`
	)

inlinevirtual

set the value of the vector field, Fourier space, real part

Parameters

value	vector containing values of the vector field, Fourier space, real part
i	the i-th cell along the x-axis
j	the j-th cell along the y-axis
k	the k-th cell along the z-axis
add	1 → add to the current value; 0 → overwrite the value

Reimplemented in cbl::data::VectorField3D.

Definition at line 606 of file Field3D.h.

◆ VectorField() [1/2]

virtual std::vector<double> cbl::data::Field3D::VectorField	(	const int	i,
		const int	j,
		const int	k
	)		const

inlinevirtual

get the value of the vector field

Parameters

i	the i-th cell along the x-axis
j	the j-th cell along the y-axis
k	the k-th cell along the z-axis

Returns: vector containing the values of the vector field

Reimplemented in cbl::data::VectorField3D.

Definition at line 436 of file Field3D.h.

◆ VectorField() [2/2]

virtual std::vector<double> cbl::data::Field3D::VectorField ( const std::vector< double > pos ) const

inlinevirtual

get the value of the vector field

Parameters

pos	vector containing the point coordinates

Returns: vector containing the values of the vector field

Reimplemented in cbl::data::VectorField3D.

Definition at line 446 of file Field3D.h.

◆ VectorField_FourierSpace_complex()

virtual std::vector<double> cbl::data::Field3D::VectorField_FourierSpace_complex	(	const int	i,
		const int	j,
		const int	k
	)		const

inlinevirtual

get the value of the vector field, Fourier space, complex part

Parameters

i	the i-th cell along the x-axis
j	the j-th cell along the y-axis
k	the k-th cell along the z-axis

Returns: vector containing the value of the vector field, Fourier space, complex part

Reimplemented in cbl::data::VectorField3D.

Definition at line 510 of file Field3D.h.

◆ VectorField_FourierSpace_real()

virtual std::vector<double> cbl::data::Field3D::VectorField_FourierSpace_real	(	const int	i,
		const int	j,
		const int	k
	)		const

inlinevirtual

get the value of the vector field, Fourier space, real part

Parameters

i	the i-th cell along the x-axis
j	the j-th cell along the y-axis
k	the k-th cell along the z-axis

Returns: vector containing the value of the vector field, Fourier space, real part

Reimplemented in cbl::data::VectorField3D.

Definition at line 498 of file Field3D.h.

◆ Volume()

double cbl::data::Field3D::Volume ( ) const

inline

get the private member m_Volume

Returns: the box volume

Definition at line 337 of file Field3D.h.

◆ XX()

double cbl::data::Field3D::XX ( const int i ) const

inline

get the value of the X coordinates at the i-th cell

Parameters

i	the index of the cell

Returns: the value of the center of the cell along the x-axis

Definition at line 346 of file Field3D.h.

◆ YY()

double cbl::data::Field3D::YY ( const int i ) const

inline

get the value of the Y coordinates at the i-th cell

Parameters

i	the index of the cell

Returns: the value of the center of the cell along the y-axis

Definition at line 355 of file Field3D.h.

◆ ZZ()

double cbl::data::Field3D::ZZ ( const int i ) const

inline

get the value of the Z coordinates at the i-th cell

Parameters

i	the index of the cell

Returns: the value of the center of the cell along the z-axis

Definition at line 364 of file Field3D.h.

The documentation for this class was generated from the following files:

Headers/Field3D.h
Field/Field3D.cpp

Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

Constructor & Destructor Documentation

◆ Field3D() [1/2]

◆ Field3D() [2/2]

Member Function Documentation

◆ deltaX()

◆ deltaY()

◆ deltaZ()

◆ GaussianConvolutionField()

◆ inds_to_index()

◆ inds_to_index_Fourier()

◆ kX()

◆ kY()

◆ kZ()

◆ MaxX()

◆ MaxY()

◆ MaxZ()

◆ MinX()

◆ MinY()

◆ MinZ()

◆ nCells()

◆ nCellsFourier()

◆ nx()

◆ ny()

◆ nz()

◆ nzFourier()

◆ ScalarField() [1/3]

◆ ScalarField() [2/3]

◆ ScalarField() [3/3]

◆ ScalarField_FourierSpace_complex() [1/2]

◆ ScalarField_FourierSpace_complex() [2/2]

◆ ScalarField_FourierSpace_real() [1/2]

◆ ScalarField_FourierSpace_real() [2/2]

◆ set_parameters() [1/2]

◆ set_parameters() [2/2]

◆ set_ScalarField()

◆ set_ScalarField_FourierSpace_complex()

◆ set_ScalarField_FourierSpace_real()

◆ set_VectorField()

◆ set_VectorField_FourierSpace_complex()

◆ set_VectorField_FourierSpace_real()

◆ VectorField() [1/2]

◆ VectorField() [2/2]

◆ VectorField_FourierSpace_complex()

◆ VectorField_FourierSpace_real()

◆ Volume()

◆ XX()

◆ YY()

◆ ZZ()
