The class ThreePointCorrelation_comoving_connected. More...

#include <ThreePointCorrelation_comoving_connected.h>

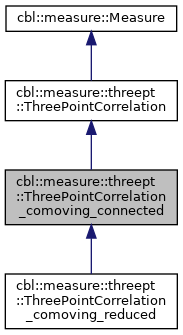

Inheritance diagram for cbl::measure::threept::ThreePointCorrelation_comoving_connected:

[legend]

Collaboration diagram for cbl::measure::threept::ThreePointCorrelation_comoving_connected:

Public Member Functions
Constructors/destructors
	ThreePointCorrelation_comoving_connected ()=default
	default constructor

	ThreePointCorrelation_comoving_connected (const catalogue::Catalogue data, const catalogue::Catalogue random, const triplets::TripletType tripletType, const double side_s, const double side_u, const double perc_increase, const int nbins)
	constructor More...

	ThreePointCorrelation_comoving_connected (const catalogue::Catalogue data, const catalogue::Catalogue random, const triplets::TripletType tripletType, const double r12, const double r12_binSize, const double r13, const double r13_binSize, const int nbins)
	constructor More...

	~ThreePointCorrelation_comoving_connected ()=default
	default destructor

Member functions to set the binning parameters
void	set_parameters (const triplets::TripletType tripletType, const double side_s, const double side_u, const double perc_increase, const int nbins)
	set the binning parameters More...

void	set_parameters (const triplets::TripletType tripletType, const double r12, const double r12_binSize, const double r13, const double r13_binSize, const int nbins)
	set the binning parameters More...

Member functions to get protected parameters
std::vector< double >	scale () const override
	get the protected member ThreePointCorrelation_comoving_connected::m_scale More...

std::vector< double >	zeta () const override
	get the protected member ThreePointCorrelation_comoving_connected::m_zeta More...

std::vector< double >	error () const override
	get the protected member ThreePointCorrelation_comoving_connected::m_error More...

Member functions to measure the three-point correlation function
void	measure (const std::string dir_output_triplets, const std::vector< std::string > dir_input_triplets={}, const bool count_ddd=true, const bool count_rrr=true, const bool count_ddr=true, const bool count_drr=true, const bool tcount=true, const double fact=0.1, const int seed=3213) override
	method to measure the three-point correlation function More...

void	measure (const std::vector< std::vector< double >> weight, const bool doJK, const std::string dir_output_triplets=par::defaultString, const std::vector< std::string > dir_input_triplets={}, const bool count_ddd=true, const bool count_rrr=true, const bool count_ddr=true, const bool count_drr=true, const bool tcount=true, const double fact=0.1, const int seed=3213) override
	method to measure the three-point correlation function More...

void	measure (const ErrorType errorType, const std::string dir_output_triplets, const std::vector< std::string > dir_input_triplets={}, const int nResamplings=100, const bool count_ddd=true, const bool count_rrr=true, const bool count_ddr=true, const bool count_drr=true, const bool tcount=true, const double fact=0.1, const int seed=3213) override
	method to measure the three-point correlation function More...

Input/Output methods
void	write (const std::string dir, const std::string file) const override
	write the monopole of the two-point correlation function More...

void	write_covariance (const std::string dir, const std::string file) const override
	write the measured three-point correlation covariance More...

Public Member Functions inherited from cbl::measure::threept::ThreePointCorrelation
ThreePType	threePType () const
	get the protected member m_threePType More...

std::shared_ptr< catalogue::Catalogue >	data () const
	get the protected member m_data More...

std::shared_ptr< catalogue::Catalogue >	random () const
	get the protected member m_random More...

std::shared_ptr< triplets::Triplet >	ddd () const
	get the protected member m_ddd More...

std::shared_ptr< triplets::Triplet >	rrr () const
	get the protected member m_rrr More...

std::shared_ptr< triplets::Triplet >	ddr () const
	get the protected member m_ddr More...

std::shared_ptr< triplets::Triplet >	drr () const
	get the protected member m_drr More...

virtual std::vector< double >	QQ () const
	get the protected member m_QQ More...

void	set_data (const catalogue::Catalogue data)
	add a data catalogue More...

void	set_random (const catalogue::Catalogue random)
	add a random catalogue More...

virtual void	measure (const std::string dir_output_triplets, const std::string dir_output_2pt, const std::vector< std::string > dir_input_triplets={}, const bool count_ddd=true, const bool count_rrr=true, const bool count_ddr=true, const bool count_drr=true, const bool tcount=false, const double fact=0.1, const int seed=3213)
	method to measure the three-point correlation function More...

virtual void	measure (const std::vector< std::vector< double >> weight, const bool doJK, const std::string dir_output_triplets, const std::string dir_output_2pt, const std::vector< std::string > dir_input_triplets={}, const bool count_ddd=true, const bool count_rrr=true, const bool count_ddr=true, const bool count_drr=true, const bool tcount=false, const double fact=0.1, const int seed=3213)
	method to measure the three-point correlation function More...

virtual void	measure (const ErrorType errorType, const std::string dir_output_triplets, const std::string dir_output_2pt, const std::vector< std::string > dir_input_triplets={}, const int nResamplings=100, const bool count_ddd=true, const bool count_rrr=true, const bool count_ddr=true, const bool count_drr=true, const bool tcount=false, const double fact=0.1, const int seed=3213)
	method to measure the three-point correlation function More...

virtual void	measure (const ErrorType errorType, const std::string dir_output_triplets, const std::vector< std::string > dir_input_triplets, const int nResamplings, const bool count_triplets, const bool tcount, const double fact, const int seed=3213)
	measure the three-point correlation function multipoles More...

virtual void	write (const std::string dir, const std::string file, const bool connected) const
	write the measured three-point correlation More...

	ThreePointCorrelation ()=default
	default constructor

	ThreePointCorrelation (const catalogue::Catalogue data, const catalogue::Catalogue random)
	constructor More...

virtual	~ThreePointCorrelation ()=default
	default destructor

Public Member Functions inherited from cbl::measure::Measure
	Measure ()=default
	default constructor

virtual	~Measure ()=default
	default destructor

virtual std::shared_ptr< data::Data >	dataset () const
	get the protected member dataset More...

Protected Attributes
Three-point correlation function data
std::vector< double >	m_scale
	scale bins

std::vector< double >	m_zeta
	binned connected three-point correlation function

std::vector< double >	m_error
	error on the binned connected three-point correlation function

Protected Attributes inherited from cbl::measure::threept::ThreePointCorrelation
ThreePType	m_threePType
	three-point correlation function type

std::shared_ptr< catalogue::Catalogue >	m_data
	input data catalogue

std::shared_ptr< catalogue::Catalogue >	m_random
	output data catalogue

std::shared_ptr< triplets::Triplet >	m_ddd
	number of data-data-data triplets

std::shared_ptr< triplets::Triplet >	m_rrr
	number of random-random-random triplets

std::shared_ptr< triplets::Triplet >	m_ddr
	number of data-data-random triplets

std::shared_ptr< triplets::Triplet >	m_drr
	number of data-random-random triplets

std::vector< std::shared_ptr< triplets::Triplet > >	m_ddd_regions
	number of data-data-data triplets

std::vector< std::shared_ptr< triplets::Triplet > >	m_rrr_regions
	number of random-random-random triplets

std::vector< std::shared_ptr< triplets::Triplet > >	m_ddr_regions
	number of data-data-random triplets

std::vector< std::shared_ptr< triplets::Triplet > >	m_drr_regions
	number of data-random-random triplets

Protected Attributes inherited from cbl::measure::Measure
std::shared_ptr< data::Data >	m_dataset
	the dataset of the measure

Additional Inherited Members
Static Public Member Functions inherited from cbl::measure::threept::ThreePointCorrelation
static std::shared_ptr< ThreePointCorrelation >	Create (const ThreePType type, const catalogue::Catalogue data, const catalogue::Catalogue random, const triplets::TripletType tripletType, const double side_s, const double side_u, const double perc_increase, const int nbins)
	static factory used to construct three-point correlation functions of any type More...

static std::shared_ptr< ThreePointCorrelation >	Create (const ThreePType type, const catalogue::Catalogue data, const catalogue::Catalogue random, const triplets::TripletType tripletType, const double r12, const double r12_binSize, const double r13, const double r13_binSize, const int nbins)
	static factory used to construct three-point correlation functions of any type More...

static std::shared_ptr< ThreePointCorrelation >	Create (const catalogue::Catalogue data, const catalogue::Catalogue random, const double r12Min, const double r12Max, const double r13Min, const double r13Max, const int nOrders, const double split=-1, const int seed=234)
	static factory used to construct three-point correlation functions multipoles More...

static std::shared_ptr< ThreePointCorrelation >	Create (const catalogue::Catalogue data, const catalogue::Catalogue random, const double rMin, const double rMax, const double binSize, const int nOrders, const double split=-1, const int seed=234)
	static factory used to construct three-point correlation functions multipoles More...

Protected Member Functions inherited from cbl::measure::threept::ThreePointCorrelation
void	count_triplets (const std::shared_ptr< catalogue::Catalogue > cat1, const chainmesh::ChainMesh_Catalogue &ChainMesh_rMAX1, const chainmesh::ChainMesh_Catalogue &ChainMesh_rMAX2, std::shared_ptr< triplets::Triplet > tt, const bool tcount=false)
	method to count the number of triplets More...

void	count_allTriplets (const std::string dir_output_triplets=par::defaultString, const std::vector< std::string > dir_input_triplets={}, const bool count_ddd=true, const bool count_rrr=true, const bool count_ddr=true, const bool count_drr=true, const bool tcount=false, const double fact=0.1)
	count the data-data-data, random-random-random, data-data-random and data-random-random triplets, used to construct the estimator of the three-point correlation function More...

void	count_triplets_region (const std::shared_ptr< catalogue::Catalogue > cat1, const chainmesh::ChainMesh_Catalogue &ChainMesh_rMAX1, const chainmesh::ChainMesh_Catalogue &ChainMesh_rMAX2, std::shared_ptr< triplets::Triplet > tt, std::vector< std::shared_ptr< triplets::Triplet >> tt_regions, const std::vector< std::vector< double >> weight, const bool tcount=false)
	method to count the number of triplets More...

void	count_allTriplets_region (const std::vector< std::vector< double >> weight, const std::string dir_output_triplets=par::defaultString, const std::vector< std::string > dir_input_triplets={}, const bool count_ddd=true, const bool count_rrr=true, const bool count_ddr=true, const bool count_drr=true, const bool tcount=false, const double fact=0.1)
	count the data-data-data, random-random-random, data-data-random and data-random-random triplets, used to construct the estimator of the three-point correlation function More...

void	write_triplets (const std::shared_ptr< triplets::Triplet > TT, const std::string dir, const std::string file) const
	write the number of triplets More...

void	read_triplets (std::shared_ptr< triplets::Triplet > TT, const std::vector< std::string > dir, const std::string file)
	read the number of triplets More...

Detailed Description

The class ThreePointCorrelation_comoving_connected.

ThreePointCorrelation_comoving_connected.h "Headers/ThreePointCorrelation_comoving_connected.h"

This is the base class used to measure the connected three-point correlation function in comoving coordinates

Definition at line 64 of file ThreePointCorrelation_comoving_connected.h.

Constructor & Destructor Documentation

◆ ThreePointCorrelation_comoving_connected() [1/2]

cbl::measure::threept::ThreePointCorrelation_comoving_connected::ThreePointCorrelation_comoving_connected	(	const catalogue::Catalogue	data,
		const catalogue::Catalogue	random,
		const triplets::TripletType	tripletType,
		const double	side_s,
		const double	side_u,
		const double	perc_increase,
		const int	nbins
	)

inline

constructor

Parameters

data	object of class Catalogue containing the input catalogue
random	of class Catalogue containing the random data catalogue
tripletType	the triplet type; it can be: TripletType::comoving_theta, TripletType::comoving_side
side_s	the size of r₁₂
side_u	the ratio r₁₃/r₁₂
perc_increase	the ratio Δr₁₂/r₁₂=Δr₁₃/r₁₃
nbins	number of bins

Definition at line 111 of file ThreePointCorrelation_comoving_connected.h.

◆ ThreePointCorrelation_comoving_connected() [2/2]

cbl::measure::threept::ThreePointCorrelation_comoving_connected::ThreePointCorrelation_comoving_connected	(	const catalogue::Catalogue	data,
		const catalogue::Catalogue	random,
		const triplets::TripletType	tripletType,
		const double	r12,
		const double	r12_binSize,
		const double	r13,
		const double	r13_binSize,
		const int	nbins
	)

inline

constructor

Parameters

data	object of class Catalogue containing the input catalogue
random	of class Catalogue containing the random data catalogue
tripletType	the triplet type; it can be: TripletType::comoving_theta, TripletType::comoving_side
r12	the size of r₁₂
r12_binSize	the size of r₁₂ bin
r13	the size of r₁₃
r13_binSize	the size of r₁₃ bin
nbins	number of bins

Definition at line 128 of file ThreePointCorrelation_comoving_connected.h.

Member Function Documentation

◆ error()

std::vector<double> cbl::measure::threept::ThreePointCorrelation_comoving_connected::error ( ) const

inlineoverridevirtual

get the protected member ThreePointCorrelation_comoving_connected::m_error

Returns: the error on the connected three-point correlation function

Reimplemented from cbl::measure::threept::ThreePointCorrelation.

Reimplemented in cbl::measure::threept::ThreePointCorrelation_comoving_reduced.

Definition at line 197 of file ThreePointCorrelation_comoving_connected.h.

◆ measure() [1/3]

void cbl::measure::threept::ThreePointCorrelation_comoving_connected::measure	(	const ErrorType	errorType,
		const std::string	dir_output_triplets,
		const std::vector< std::string >	dir_input_triplets = `{}`,
		const int	nResamplings = `100`,
		const bool	count_ddd = `true`,
		const bool	count_rrr = `true`,
		const bool	count_ddr = `true`,
		const bool	count_drr = `true`,
		const bool	tcount = `true`,
		const double	fact = `0.1`,
		const int	seed = `3213`
	)

overridevirtual

method to measure the three-point correlation function

Parameters

errorType	type of error
dir_output_triplets	name of the output directory used to store the number of triplets
dir_input_triplets	name of the input directories containing the number of triplets
nResamplings	number of resamplings
count_ddd	1 → count the data-data-data triplets; 0 → read the data-data-data triplets from a file
count_rrr	1 → count the random-random-random triplets; 0 → read the random-random-random triplets from a file
count_ddr	1 → count the data-data-random triplets; 0 → read the data-data-random triplets from a file
count_drr	1 → count the data-random-random triplets; 0 → read the data-random-random triplets from a file
tcount	1 → activate the CPU time counter; 0 → no time counter
fact	factor used to compute the cell size of the chain mesh: it is multiplied by the maximum distance considered for the couples and can be setted by the user to optimize the count of the couples
seed	the seed for random number generation

Reimplemented from cbl::measure::threept::ThreePointCorrelation.

Definition at line 203 of file ThreePointCorrelation_comoving_connected.cpp.

◆ measure() [2/3]

void cbl::measure::threept::ThreePointCorrelation_comoving_connected::measure	(	const std::string	dir_output_triplets,
		const std::vector< std::string >	dir_input_triplets = `{}`,
		const bool	count_ddd = `true`,
		const bool	count_rrr = `true`,
		const bool	count_ddr = `true`,
		const bool	count_drr = `true`,
		const bool	tcount = `true`,
		const double	fact = `0.1`,
		const int	seed = `3213`
	)

overridevirtual

method to measure the three-point correlation function

Parameters

dir_output_triplets	name of the output directory used to store the number of triplets
dir_input_triplets	name of the input directories containing the number of triplets
count_ddd	1 → count the data-data-data triplets; 0 → read the data-data-data triplets from a file
count_rrr	1 → count the random-random-random triplets; 0 → read the random-random-random triplets from a file
count_ddr	1 → count the data-data-random triplets; 0 → read the data-data-random triplets from a file
count_drr	1 → count the data-random-random triplets; 0 → read the data-random-random triplets from a file
tcount	1 → activate the CPU time counter; 0 → no time counter
fact	factor used to compute the cell size of the chain mesh: it is multiplied by the maximum distance considered for the couples and can be setted by the user to optimize the count of the couples
seed	the seed for random number generation

Reimplemented from cbl::measure::threept::ThreePointCorrelation.

Definition at line 84 of file ThreePointCorrelation_comoving_connected.cpp.

◆ measure() [3/3]

void cbl::measure::threept::ThreePointCorrelation_comoving_connected::measure	(	const std::vector< std::vector< double >>	weight,
		const bool	doJK,
		const std::string	dir_output_triplets = `par::defaultString`,
		const std::vector< std::string >	dir_input_triplets = `{}`,
		const bool	count_ddd = `true`,
		const bool	count_rrr = `true`,
		const bool	count_ddr = `true`,
		const bool	count_drr = `true`,
		const bool	tcount = `true`,
		const double	fact = `0.1`,
		const int	seed = `3213`
	)

overridevirtual

method to measure the three-point correlation function

Parameters

weight	region weights
doJK	→ normalize to 1/(n-1); 1 → normalize to n-1/n (for Jackknife)
dir_output_triplets	name of the output directory used to store the number of triplets
dir_input_triplets	name of the input directories containing the number of triplets
count_ddd	1 → count the data-data-data triplets; 0 → read the data-data-data triplets from a file
count_rrr	1 → count the random-random-random triplets; 0 → read the random-random-random triplets from a file
count_ddr	1 → count the data-data-random triplets; 0 → read the data-data-random triplets from a file
count_drr	1 → count the data-random-random triplets; 0 → read the data-random-random triplets from a file
tcount	1 → activate the CPU time counter; 0 → no time counter
fact	factor used to compute the cell size of the chain mesh: it is multiplied by the maximum distance considered for the couples and can be setted by the user to optimize the count of the couples
seed	the seed for random number generation

Compute resamplings and covariance matrix

Reimplemented from cbl::measure::threept::ThreePointCorrelation.

Definition at line 125 of file ThreePointCorrelation_comoving_connected.cpp.

◆ scale()

std::vector<double> cbl::measure::threept::ThreePointCorrelation_comoving_connected::scale ( ) const

inlineoverridevirtual

get the protected member ThreePointCorrelation_comoving_connected::m_scale

Returns: the scale bins

Reimplemented from cbl::measure::threept::ThreePointCorrelation.

Reimplemented in cbl::measure::threept::ThreePointCorrelation_comoving_reduced.

Definition at line 181 of file ThreePointCorrelation_comoving_connected.h.

◆ set_parameters() [1/2]

void cbl::measure::threept::ThreePointCorrelation_comoving_connected::set_parameters	(	const triplets::TripletType	tripletType,
		const double	r12,
		const double	r12_binSize,
		const double	r13,
		const double	r13_binSize,
		const int	nbins
	)

set the binning parameters

Parameters

tripletType	the triplet type; it can be: TripletType::comoving_theta, TripletType::comoving_side
r12	the size of r₁₂
r12_binSize	the size of r₁₂ bin
r13	the size of r₁₃
r13_binSize	the size of r₁₃ bin
nbins	number of bins

Definition at line 72 of file ThreePointCorrelation_comoving_connected.cpp.

◆ set_parameters() [2/2]

void cbl::measure::threept::ThreePointCorrelation_comoving_connected::set_parameters	(	const triplets::TripletType	tripletType,
		const double	side_s,
		const double	side_u,
		const double	perc_increase,
		const int	nbins
	)

set the binning parameters

Parameters

tripletType	the triplet type; it can be: TripletType::comoving_theta, TripletType::comoving_side
side_s	the size of r₁₂
side_u	the ratio r₁₃/r₁₂
perc_increase	the ratio Δr₁₂/r₁₂=Δr₁₃/r₁₃
nbins	number of bins
