The class Modelling_NumberCounts1D_Mass. More...

#include <Modelling_NumberCounts1D_Mass.h>

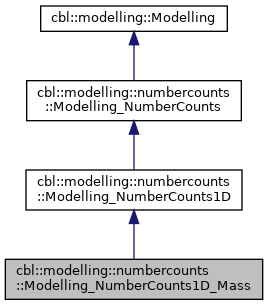

Inheritance diagram for cbl::modelling::numbercounts::Modelling_NumberCounts1D_Mass:

[legend]

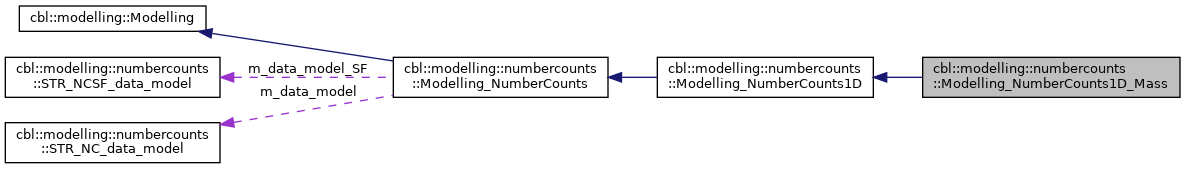

Collaboration diagram for cbl::modelling::numbercounts::Modelling_NumberCounts1D_Mass:

[legend]

Public Member Functions
Constructors/destructors
	Modelling_NumberCounts1D_Mass ()=default
	default constuctor _NumberCounts1D_Mass

	Modelling_NumberCounts1D_Mass (const std::shared_ptr< cbl::measure::numbercounts::NumberCounts > nc)
	constuctor More...

	Modelling_NumberCounts1D_Mass (const std::shared_ptr< cbl::data::Data > dataset, glob::HistogramType hist_type, double fact)
	constuctor More...

virtual	~Modelling_NumberCounts1D_Mass ()=default
	default destructor

Member functions used to set the model parameters
void	set_data_model_snapshot (const cbl::cosmology::Cosmology cosmology={}, const double redshift=0., const std::string method_Pk="CAMB", const double k_min=1.e-4, const double k_max=100., const int step=500, const int norm=-1, const double Delta=200., const bool isDelta_critical=true, const std::string model_MF="Tinker", const double Volume=par::defaultDouble, const double Mass_min=par::defaultDouble, const double Mass_max=par::defaultDouble, const int Mass_step=100, const double prec=1.e-4)
	set the data used to construct mass number counts of simulation snapshots More...

void	set_model_NumberCounts_cosmology (const std::vector< cbl::cosmology::CosmologicalParameter > cosmo_param={}, const std::vector< statistics::PriorDistribution > cosmo_param_prior={})
	set the cosmological parameters used to model the mass function More...

Public Member Functions inherited from cbl::modelling::numbercounts::Modelling_NumberCounts1D
	Modelling_NumberCounts1D ()=default
	default constuctor

	Modelling_NumberCounts1D (const std::shared_ptr< cbl::measure::numbercounts::NumberCounts > nc)
	constuctor More...

	Modelling_NumberCounts1D (const std::shared_ptr< cbl::data::Data > dataset, glob::HistogramType hist_type, double fact)
	constuctor More...

virtual	~Modelling_NumberCounts1D ()=default
	default destructor

Public Member Functions inherited from cbl::modelling::numbercounts::Modelling_NumberCounts
void	set_data_model_SF (const cosmology::Cosmology cosmology, const std::vector< double > radii, const double redshift, const std::string model, const double b_eff, double slope=0.854, double offset=0.420, const double deltav_NL=-0.795, const double del_c=1.69, const std::string method_Pk="EisensteinHu", const double k_Pk_ratio=-1., const bool store_output=true, const std::string output_root="test", const std::string interpType="Linear", const double k_max=100., const std::string input_file=par::defaultString, const bool is_parameter_file=true)
	Member functions used to set the model parameters. More...

virtual void	set_data_model_snapshot (const cbl::cosmology::Cosmology cosmology={}, const double redshift=0., const std::string method_Pk="CAMB", const double k_min=1.e-4, const double k_max=100., const int step=500, const bool store_output=true, const int norm=-1, const double Delta=200., const bool isDelta_critical=true, const std::string model_MF="Tinker", const double Volume=par::defaultDouble, const double Mass_min=par::defaultDouble, const double Mass_max=par::defaultDouble, const int Mass_step=100, const double prec=1.e-4)
	set the data used to construct mass number counts of simulation snapshots More...

	Modelling_NumberCounts ()=default
	default constuctor _NumberCounts

	Modelling_NumberCounts (const std::shared_ptr< cbl::measure::numbercounts::NumberCounts > nc)
	constuctor More...

	Modelling_NumberCounts (glob::HistogramType hist_type, double fact)
	constuctor More...

virtual	~Modelling_NumberCounts ()=default
	default destructor

modelling::numbercounts::STR_NC_data_model	data_model ()
	get the member m_data_model More...

modelling::numbercounts::STR_NCSF_data_model	data_model_SF ()
	get the member m_data_model_SF More...

void	set_data_model (const cbl::cosmology::Cosmology cosmology={}, const double redshift=0., const std::string method_Pk="CAMB", const double k_min=1.e-4, const double k_max=100., const int step=500, const bool store_output=true, const int norm=-1, const double Delta=200., const bool isDelta_critical=true, const std::string model_MF="Tinker", const std::string selection_function_file=par::defaultString, const std::vector< int > selection_function_column={}, const double z_min=par::defaultDouble, const double z_max=par::defaultDouble, const int z_step=50, const double Mass_min=par::defaultDouble, const double Mass_max=par::defaultDouble, const int Mass_step=100, const double area_degrees=par::defaultDouble, const double prec=1.e-4)
	set the data used to construct generic models of number counts More...

void	set_data_model (const cbl::cosmology::Cosmology cosmology, const std::vector< double > SF_weights, const double z_pivot, const double proxy_pivot, const double mass_pivot, const double log_base, const std::string method_Pk, const bool store_output=true, const int norm=-1, const double Delta=200., const bool isDelta_critical=true, const std::string model_MF="Tinker", const std::string model_bias="Tinker", const double z_min=par::defaultDouble, const double z_max=par::defaultDouble, const double area_degrees=par::defaultDouble, const double prec=1.e-4)
	set the data used to construct a model of number counts as a function of a mass proxy, here expressed as \(\lambda\), with the following functional form: More...

Public Member Functions inherited from cbl::modelling::Modelling
void	m_set_posterior (const int seed)
	set the interal variable m_posterior More...

	Modelling ()=default
	default constuctor

virtual	~Modelling ()=default
	default destructor

std::shared_ptr< data::Data >	data ()
	return the dataset More...

std::shared_ptr< data::Data >	data_fit ()
	return the dataset More...

std::shared_ptr< statistics::Likelihood >	likelihood ()
	return the likelihood parameters More...

std::shared_ptr< statistics::Posterior >	posterior ()
	return the posterior parameters More...

std::shared_ptr< statistics::ModelParameters >	likelihood_parameters ()
	return the likelihood parameters More...

std::shared_ptr< statistics::ModelParameters >	posterior_parameters ()
	return the posterior parameters More...

virtual void	set_parameter_from_string (const std::string parameter, const double value)
	set the value of a parameter providing its name string More...

virtual double	get_parameter_from_string (const std::string parameter) const
	get the value of a parameter providing its name string More...

std::shared_ptr< statistics::PriorDistribution >	get_prior (const int i)
	get the internal variable m_parameter_priors More...

std::shared_ptr< statistics::Model >	get_response_function ()
	return the response function used to compute the super-sample covariance More...

void	reset_fit_range ()
	reset the fit range More...

void	set_fit_range (const double xmin, const double xmax)
	set the fit range More...

void	set_fit_range (const double xmin, const double xmax, const double ymin, const double ymax)
	set the fit range More...

void	set_data (const std::shared_ptr< data::Data > dataset)
	set the dataset More...

void	set_likelihood (const statistics::LikelihoodType likelihood_type, const std::vector< size_t > x_index={0, 2}, const int w_index=-1, const double prec=1.e-10, const int Nres=-1)
	set the likelihood function More...

void	set_likelihood (const cbl::statistics::Likelihood_function log_likelihood_function)
	set the likelihood function, given a user-defined log-likelihood function More...

void	maximize_likelihood (const std::vector< double > start, const std::vector< std::vector< double >> parameter_limits, const unsigned int max_iter=10000, const double tol=1.e-6, const double epsilon=1.e-3)
	function that maximizes the posterior, finds the best-fit parameters and stores them in the model More...

void	maximize_posterior (const std::vector< double > start, const unsigned int max_iter=10000, const double tol=1.e-6, const double epsilon=1.e-3, const int seed=666)
	function that maximizes the posterior, finds the best-fit parameters and stores them in the model More...

void	sample_posterior (const int chain_size, const int nwalkers, const int seed=666, const double aa=2, const bool parallel=true)
	sample the posterior, initializing the chains by drawing from the prior distributions More...

void	sample_posterior (const int chain_size, const int nwalkers, const double radius, const std::vector< double > start, const unsigned int max_iter=10000, const double tol=1.e-6, const double epsilon=1.e-3, const int seed=666, const double aa=2, const bool parallel=true)
	sample the posterior, initializing the chains in a ball around the posterior best-fit parameters values More...

void	sample_posterior (const int chain_size, const int nwalkers, std::vector< double > &value, const double radius, const int seed=666, const double aa=2, const bool parallel=true)
	sample the posterior, initializing the chains by drawing from the prior distributions More...

void	sample_posterior (const int chain_size, const std::vector< std::vector< double >> chain_value, const int seed=666, const double aa=2, const bool parallel=true)
	sample the posterior, initializing the chains with input values More...

void	sample_posterior (const int chain_size, const int nwalkers, const std::string input_dir, const std::string input_file, const int seed=666, const double aa=2, const bool parallel=true)
	sample the posterior, initializing the chains reading the input values from an input file More...

void	importance_sampling (const std::string input_dir, const std::string input_file, const int seed=666, const std::vector< size_t > column={}, const int header_lines_to_skip=1, const bool is_FITS_format=false, const bool apply_to_likelihood=false)
	perform importance sampling More...

void	write_chain (const std::string output_dir, const std::string output_file, const int start=0, const int thin=1, const bool is_FITS_format=false, const int prec=5, const int ww=14)
	write the chains obtained after the MCMC sampling More...

void	read_chain (const std::string input_dir, const std::string input_file, const int nwalkers, const std::vector< size_t > columns={}, const int skip_header=1, const bool fits=false)
	read the chains More...

void	show_results (const int start=0, const int thin=1, const int nbins=50, const bool show_mode=false, const int ns=-1)
	show the results of the MCMC sampling on screen More...

void	write_results (const std::string output_dir, const std::string root_file, const int start=0, const int thin=1, const int nbins=50, const bool fits=false, const bool compute_mode=false, const int ns=-1)
	write the results of the MCMC sampling to file More...

virtual void	write_model (const std::string output_dir, const std::string output_file, const std::vector< double > xx, const std::vector< double > parameters)
	write the model at xx for given parameters More...

virtual void	write_model (const std::string output_dir, const std::string output_file, const std::vector< double > xx, const std::vector< double > yy, const std::vector< double > parameters)
	write the model at xx, yy for given parameters More...

virtual void	write_model_at_bestfit (const std::string output_dir, const std::string output_file, const std::vector< double > xx)
	write the model at xx with best-fit parameters obtained from posterior maximization More...

virtual void	write_model_at_bestfit (const std::string output_dir, const std::string output_file, const std::vector< double > xx, const std::vector< double > yy)
	write the model at xx, yy with best-fit parameters obtained from likelihood maximization More...

virtual void	write_model_from_chains (const std::string output_dir, const std::string output_file, const std::vector< double > xx, const int start=0, const int thin=1)
	write the model at xx computing 16th, 50th and 84th percentiles from the chains More...

virtual void	write_model_from_chains (const std::string output_dir, const std::string output_file, const std::vector< double > xx, const std::vector< double > yy, const int start=0, const int thin=1)
	write the model at xx, yy computing 16th, 50th and 84th percentiles from the chains More...

double	reduced_chi2 (const std::vector< double > parameter={})
	the reduced \(\chi^2\) More...

Additional Inherited Members
Protected Member Functions inherited from cbl::modelling::Modelling
void	m_set_prior (std::vector< statistics::PriorDistribution > prior_distribution)
	set the internal variable m_parameter_priors More...

void	m_isSet_response ()
	check if the response function used to compute the super-sample covariance is set

Protected Attributes inherited from cbl::modelling::numbercounts::Modelling_NumberCounts
glob::HistogramType	m_HistogramType
	the histogram type

double	m_fact
	the normalization factor

modelling::numbercounts::STR_NC_data_model	m_data_model
	the container of parameters for number counts model computation

modelling::numbercounts::STR_NCSF_data_model	m_data_model_SF
	the container of parameters for size number counts model computation

Protected Attributes inherited from cbl::modelling::Modelling
std::shared_ptr< data::Data >	m_data = NULL
	input data to be modelled

bool	m_fit_range = false
	check if fit range has been set

std::shared_ptr< data::Data >	m_data_fit
	input data restricted to the range used for the fit

std::shared_ptr< statistics::Model >	m_model = NULL
	input model

std::shared_ptr< statistics::Model >	m_response_func = NULL
	response function for the computation of the super-sample covariance

std::shared_ptr< statistics::Likelihood >	m_likelihood = NULL
	likelihood

std::vector< std::shared_ptr< statistics::PriorDistribution > >	m_parameter_priors
	prior

std::shared_ptr< statistics::Posterior >	m_posterior = NULL
	posterior

Detailed Description

The class Modelling_NumberCounts1D_Mass.

Modelling_NumberCounts1D_Mass.h "Headers/Modelling_NumberCounts1D_Mass.h"

This file defines the interface of the base class Modelling_NumberCounts1D_Mass, used for modelling redshift number counts measurements

Definition at line 69 of file Modelling_NumberCounts1D_Mass.h.

Constructor & Destructor Documentation

◆ Modelling_NumberCounts1D_Mass() [1/2]

cbl::modelling::numbercounts::Modelling_NumberCounts1D_Mass::Modelling_NumberCounts1D_Mass ( const std::shared_ptr< cbl::measure::numbercounts::NumberCounts > nc )

inline

constuctor

Parameters

nc	the number counts to model _NumberCounts1D_Mass

Definition at line 90 of file Modelling_NumberCounts1D_Mass.h.

◆ Modelling_NumberCounts1D_Mass() [2/2]

cbl::modelling::numbercounts::Modelling_NumberCounts1D_Mass::Modelling_NumberCounts1D_Mass	(	const std::shared_ptr< cbl::data::Data >	dataset,
		glob::HistogramType	hist_type,
		double	fact
	)

inline

constuctor

Parameters

dataset	the number counts dataset
hist_type	the histogram type
fact	the normalization factor _NumberCounts1D_Mass

Definition at line 100 of file Modelling_NumberCounts1D_Mass.h.

Member Function Documentation

◆ set_data_model_snapshot()

void cbl::modelling::numbercounts::Modelling_NumberCounts1D_Mass::set_data_model_snapshot	(	const cbl::cosmology::Cosmology	cosmology = `{}`,
		const double	redshift = `0.`,
		const std::string	method_Pk = `"CAMB"`,
		const double	k_min = `1.e-4`,
		const double	k_max = `100.`,
		const int	step = `500`,
		const int	norm = `-1`,
		const double	Delta = `200.`,
		const bool	isDelta_critical = `true`,
		const std::string	model_MF = `"Tinker"`,
		const double	Volume = `par::defaultDouble`,
		const double	Mass_min = `par::defaultDouble`,
		const double	Mass_max = `par::defaultDouble`,
		const int	Mass_step = `100`,
		const double	prec = `1.e-4`
	)

set the data used to construct mass number counts of simulation snapshots

Parameters

cosmology	the cosmological model used to compute ξ_DM
redshift	redshift
method_Pk	method used to compute the power spectrum; valid choices for method_Pk are: CAMB [http://camb.info/], CLASS [http://class-code.net/], MPTbreeze-v1 [http://arxiv.org/abs/1207.1465], EisensteinHu [http://background.uchicago.edu/~whu/transfer/transferpage.html]
k_min	minimum wave vector module up to which the binned dark matter power spectrum is computed
k_max	maximum wave vector module up to which the binned dark matter power spectrum is computed
step	number of steps used to compute the binned power spectrum
norm	0 → don't normalize the power spectrum; 1 → normalize the power spectrum
Delta	\(\Delta\), the overdensity
isDelta_critical	\(\rightarrow\) \(\Delta\) is the overdensity defined with respect to the critical density
model_MF	author(s) who proposed the mass function
Volume	the snapshot volume
Mass_min	minimum halo mass
Mass_max	maximum halo mass
Mass_step	the number of bins for mass vector
prec	the precision

Definition at line 50 of file Modelling_NumberCounts1D_Mass.cpp.

◆ set_model_NumberCounts_cosmology()

void cbl::modelling::numbercounts::Modelling_NumberCounts1D_Mass::set_model_NumberCounts_cosmology	(	const std::vector< cbl::cosmology::CosmologicalParameter >	cosmo_param = `{}`,
		const std::vector< statistics::PriorDistribution >	cosmo_param_prior = `{}`
	)

set the cosmological parameters used to model the mass function

the model has N cosmological parameters

Parameters

cosmo_param	vector of enums containing cosmological parameters
cosmo_param_prior	vector containing the priors for the cosmological parameters

Definition at line 84 of file Modelling_NumberCounts1D_Mass.cpp.

The documentation for this class was generated from the following files:

Headers/Modelling_NumberCounts1D_Mass.h
Modelling/NumberCounts/Modelling_NumberCounts1D_Mass.cpp

Public Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ Modelling_NumberCounts1D_Mass() [1/2]

◆ Modelling_NumberCounts1D_Mass() [2/2]

Member Function Documentation

◆ set_data_model_snapshot()

◆ set_model_NumberCounts_cosmology()
